| Model |
PH-EC370A_DBK01 |
| Product Name |

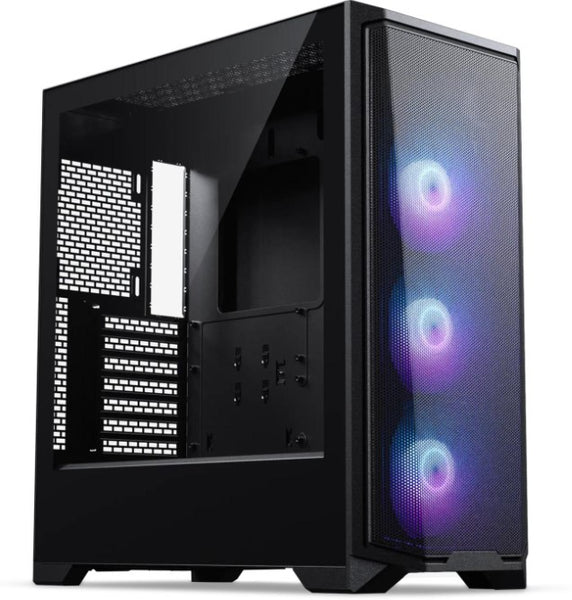

Eclipse G370A |
| Color |
Black |
| Case Type |
Mid-Tower |
| Dimensions |
465 × 476 × 220 mm |
| Materials |
Steel Chassis, Tempered Glass Window, ABS Plastic |
| Motherboard Support |
SSI-EEB, E-ATX, ATX, Micro-ATX, Mini-ITX |
| Expansion Slots |
7 |
| Vertical GPU Support |
No |
| Max GPU Length |
375 mm with front fans installed |
| Max GPU Width |
170 mm |
| Max CPU Cooler Height |
170 mm |
| Max PSU Length |
200 mm |
| 2.5" Drive Support |
2 |
| 3.5" Drive Support |
1 |
| Additional Storage |
+1 × 3.5" HDD / +2 × 2.5" SSD |
| Fan Support |
Up to 7 × 120 mm |
| Top Fan Support |
3 × 120 mm |
| Front Fan Support |
3 × 120 mm |
| Rear Fan Support |
1 × 120 mm |
| Included Fans |
3 × M25-120 D-RGB |
| Included Fan Position |
Front |
| Top Radiator Support |
Up to 360 mm |
| Front Radiator Support |
Up to 240 mm |
| Max Top Radiator Size |
400 × 120 × 60 mm |
| Front Radiator Limitation |
240mm front radiator cannot be used with 360mm top radiator |
| D-RGB |
Yes |
| Front I/O |
1 × USB 3.0, 1 × USB-C 3.0 |
| Audio |
Microphone / Headphone Combo |
| Buttons |
Power + Reset |
| Net Weight |
6.43 kg |
| Gross Weight |
7.72 kg |
| Warranty |
2 Years Limited |
