| Model |
PH-EC500GA_DMW01A |
| Product Name |

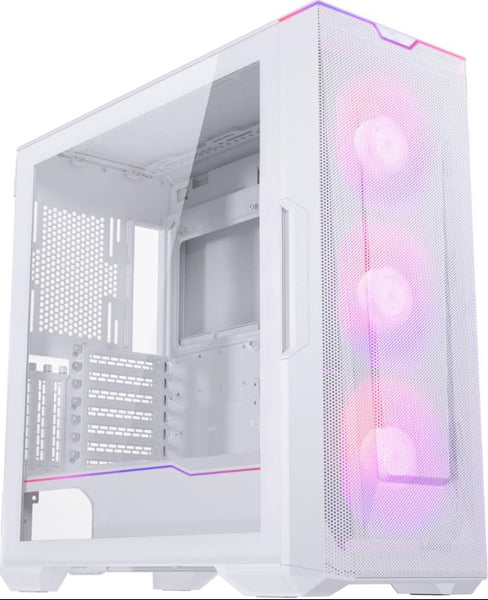

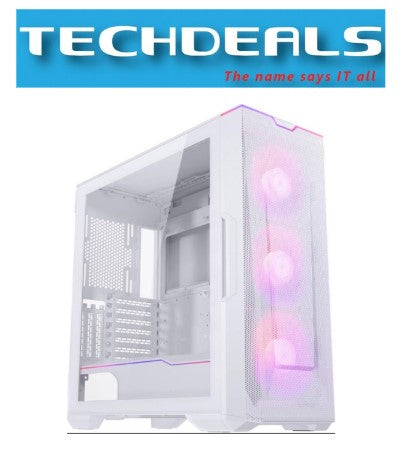

Eclipse G500A |
| Color |
Matte White |
| Case Type |
Mid-Tower |
| Dimensions |
240 × 500 × 515 mm |
| Materials |
Steel Chassis, Tempered Glass |
| Motherboard Support |
E-ATX, ATX, Micro-ATX, Mini-ITX |
| Max E-ATX Width |
280 mm |
| Expansion Slots |
7 |
| Vertical GPU Support |
3-Slot |
| Riser Cable |
Sold separately |
| Max GPU Length |
435 mm |
| Max CPU Cooler Height |
185 mm |
| Max PSU Length |
250 mm |
| 2.5" Drive Support |
Up to 9 |
| 3.5" Drive Support |
Up to 10 |
| Included HDD Brackets |
2 |
| Included SSD Brackets |
3 |
| 120mm Fan Support |
Top 3, Front 3, Rear 1 |
| 140mm Fan Support |
Top 3, Front 3, Rear 1 |
| Included Fans |
3 × M25-140 D-RGB PWM |
| Included Fan Position |
Front |
| Top Radiator Support |
Up to 360mm / 280mm |
| Front Radiator Support |
Up to 360mm / 420mm |
| Rear Radiator Support |
Up to 120mm / 140mm |
| D-RGB |
Built-in D-RGB controller + 2 LED strips |
| Front I/O |
1 × USB-C 3.2 Gen2, 2 × USB 3.0 |
| Audio |
Microphone / Headphone |
| D-RGB Controls |
Mode + Color buttons |
| Net Weight |
10.68 kg |
| Gross Weight |
12.85 kg |
| Warranty |
5 Years Limited |
