| Model |

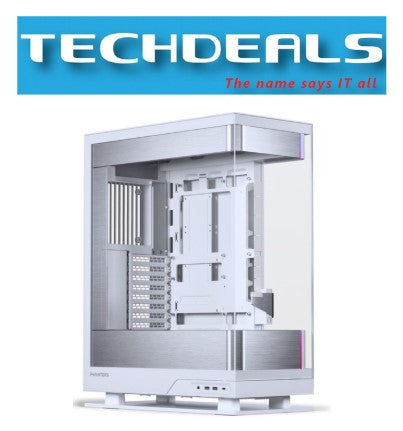

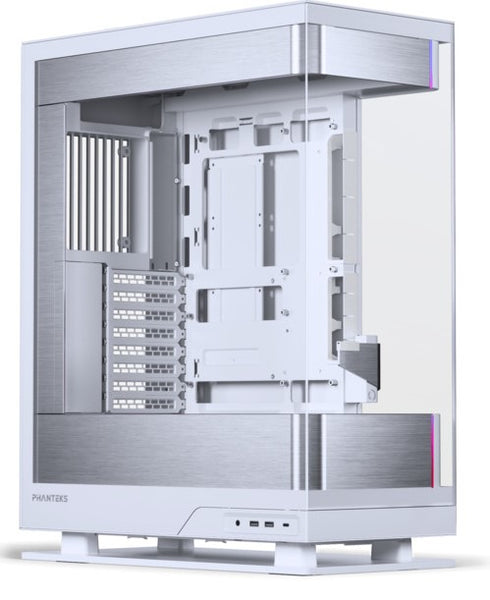

Evolv X2 Matrix |
| Part Number |
PH-ES524XM_DMW01 |
| UPC |
886523304074 |
| Colour |
White / Brushed Aluminum |
| Case Type |
Mid-Tower |
| Dimensions (D × W × H) |
454 × 228 × 588 mm |
| Materials |
Steel Chassis + Aluminum Panels + Tempered Glass + ABS + Polyester |
| Motherboard Support |
E-ATX / ATX / Micro-ATX / Mini-ITX |
| E-ATX Support |
Up to 280 mm wide |
| Rear-Connect Motherboards |
MSI Project Zero / ASUS BTF / Gigabyte Project Stealth |
| Expansion Slots |
8 |
| Vertical GPU Support |
Yes |
| GPU Riser |
Sold separately |
| GPU Length |
Up to 380 mm |
| GPU Width |
Up to 170 mm |
| CPU Cooler Height |
Up to 170 mm |
| PSU Length |
Up to 250 mm |
| 2.5" Drive Positions |
5 |
| 3.5" Drive Positions |
2 |
| Included Fans |
None |
| Top Fans |
3 × 120 mm |
| Bottom Fans |
3 × 120 mm |
| Rear Fan |
1 × 120 mm |
| Maximum Fans |
7 × 120 mm |
| Top Radiator |
Up to 360 mm |
| Top Radiator Clearance |
Up to 415 × 130 × 32 mm |
| Front Radiator |
Not supported |
| Bottom Radiator |
Not supported |
| Rear Radiator |
Not supported |
| D-RGB |
Integrated |
| D-RGB Strips |
3 × built-in D-RGB LED strips |
| Matrix Display |
900 LEDs |
| Matrix Layout |
Matrix 900 |
| Matrix Power |
5V / 5.3A |
| Matrix Connection |
USB 2.0 motherboard header + SATA |
| Matrix Software |
Phanteks NexLinq App |
| Matrix Functions |
System stats, temperature, load, clock speed, time, date, animations, messages |
| Front I/O |
2 × USB 3.0 + 1 × USB-C 3.2 Gen2x2 |
| Audio |
Microphone / Headphone Combo |
| Controls |
Power / Reset |
| Tempered Glass |
Yes |
| Net Weight |
14.2 kg |
| Gross Weight |
16.5 kg |
| Warranty |
5 Years Limited |
