| Model |
PH-ES524XTG_DMW01 |
| Product Name |

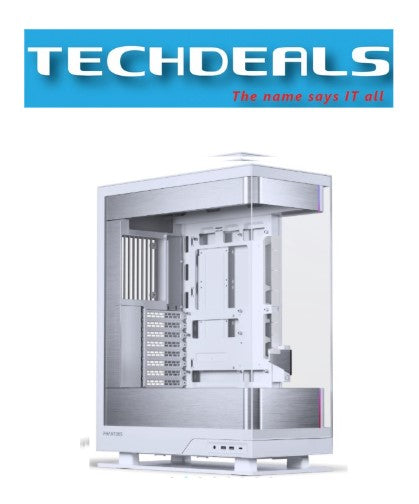

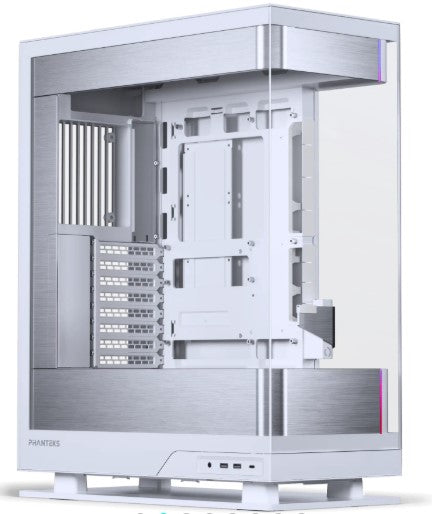

Evolv X2 |
| Color |
Silver White / Brushed Aluminium |
| Case Type |
Mid-Tower |
| Dimensions |
454 × 228 × 588 mm |
| Materials |
Steel chassis, Aluminium panels, Tempered Glass, ABS |
| Motherboard Support |
E-ATX, ATX, Micro-ATX, Mini-ITX |
| Max E-ATX Width |
280 mm |
| Rear-Connect Motherboards |
MSI Project Zero, ASUS BTF, Gigabyte Project Stealth |
| Expansion Slots |
8 |
| Vertical GPU Support |
Yes |
| Riser Cable |
Sold separately |
| Max GPU Length |
380 mm |
| Max GPU Width |
170 mm |
| Max CPU Cooler Height |
170 mm |
| Max PSU Length |
250 mm |
| 2.5" Drive Support |
5 |
| 3.5" HDD Support |
2 |
| Additional Storage |
+1 × 3.5" HDD or +3 × 2.5" SSD depending bracket configuration |
| Fan Support |
Up to 7 × 120 mm |
| Top Fan Support |
3 × 120 mm |
| Bottom Fan Support |
3 × 120 mm |
| Rear Fan Support |
1 × 120 mm |
| Front Fan Support |
None |
| Included Fans |
None |
| Top Radiator Support |
Up to 360 mm |
| Max Top Radiator Size |
415 × 130 × 32 mm |
| D-RGB |
3 × built-in D-RGB LED strips |
| Front I/O |
2 × USB 3.0, 1 × USB-C 3.2 Gen2x2, Mic/Headphone Combo |
| Buttons |
Power, Reset |
| Net Weight |
14.2 kg |
| Warranty |
5 Years Limited |
