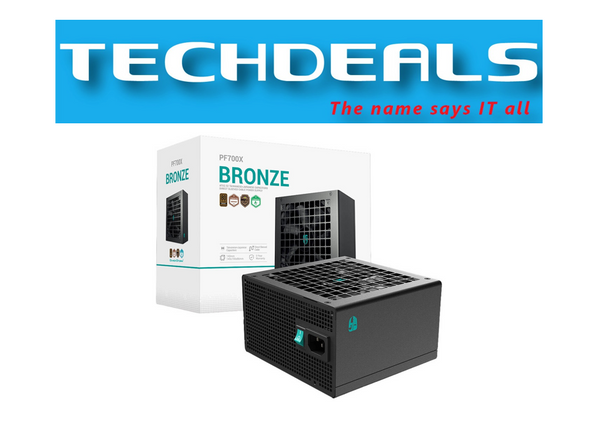

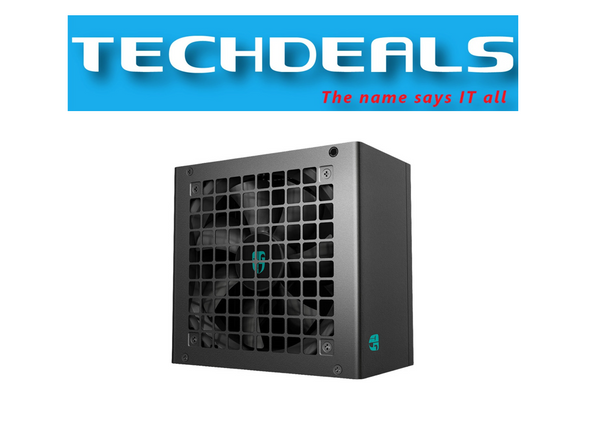

Deepcool Gamerstorm PF700X 700W 80+ Atx Psu

Deepcool Gamerstorm PF700X 700W 80+ Atx Psu

$63.00

Tax included.

🔌 Key Specs

  • Wattage: 700 W total power output.

  • Form Factor: ATX12V v2.52 standard.

  • Efficiency: 80 PLUS Bronze certified (80 PLUS 230V EU Bronze, Cybenetics Bronze, PPLP Bronze), typically ~88 % efficiency at ~50 % load.

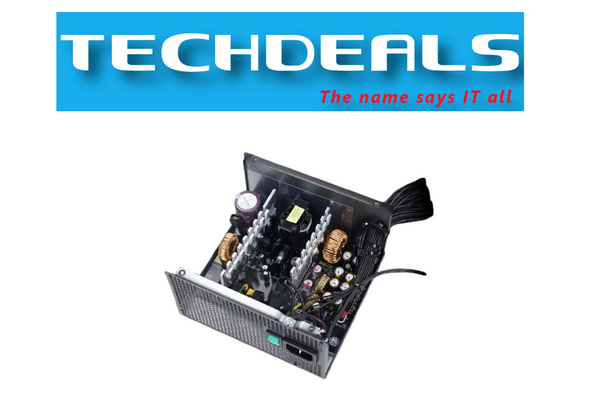

  • Topology: Active PFC + Double Forward + DC‑to‑DC design for stable voltage regulation.

  • Cooling: 120 mm long‑life HYB fan for airflow and quieter operation.

  • Protections: Multiple built‑in protections including OPP, OVP, OCP, SCP, OTP, UVP, SIP, and NLO.

  • Caps: High‑quality Taiwanese + Japanese electrolytic capacitors.

  • Connectors:

    • 24‑pin ATX Ă—1

    • EPS 4+4‑pin Ă—1

    • PCIe 6+2‑pin Ă—2

    • SATA Ă—6

    • Molex Ă—2

  • Operating Temp: 0–40 °C.

  • Dimensions: ~150 × 140 × 86 mm.

  • Warranty: Commonly ~3 years with many retailers.

🧠 Performance Notes

  • Efficiency & Stability: Bronze certification and DC‑to‑DC design help reduce wasted power and maintain stable voltages under typical load conditions (~88 % efficiency at ~50 % load).

  • Cooling & Noise: 120 mm HYB fan is designed to balance airflow and quiet operation, though noise will rise under heavy load.

  • Protections: Good safety coverage for typical PC builds.

⚠️ Considerations / Community Points

  • This PSU uses fixed (non‑modular) cables, so cable management depends on your case layout.

  • It’s positioned as a budget PSU — adequate for mainstream gaming PCs and everyday builds, but it’s not a high‑end, fully modular, or premium tier unit.

  • Enthusiast communities sometimes view Deepcool PSUs as lower tier compared to premium brands (Tier C/D in some tier lists), largely because they are budget‑oriented and not always extensively tested by independent labs. This doesn’t mean they’re unsafe, but expectations for longevity and performance headroom should be tempered.

🧾 Suitable For

  • Budget to mid‑range gaming PCs

  • General home/office systems requiring ~500–650 W typical load

  • Builds without need for modular PSU cabling

🧠 When to Consider Upgrading

  • If you’re planning high‑end GPUs/CPUs or overclocking, or want modular cabling, a higher‑tier PSU (Gold rated, fully modular) might be a better long‑term choice.
