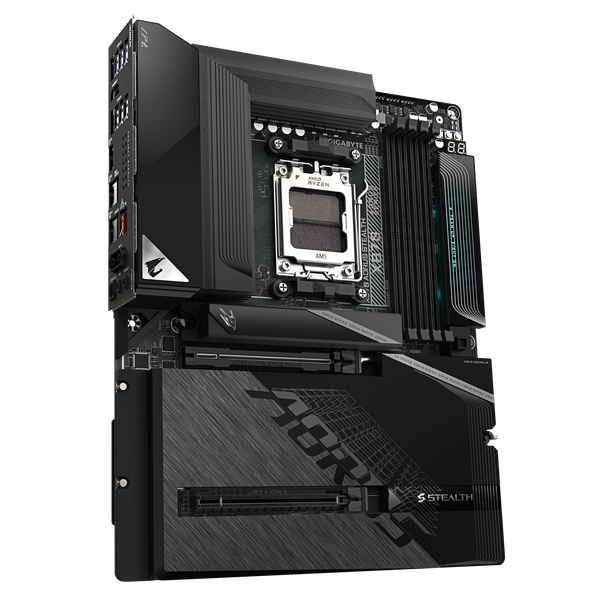

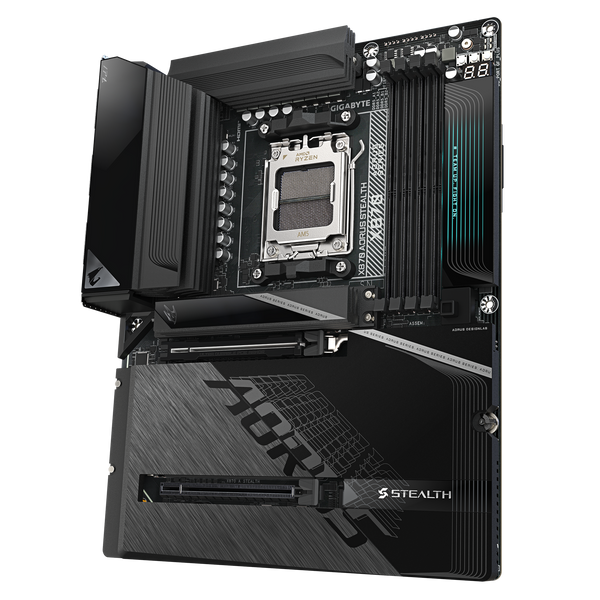

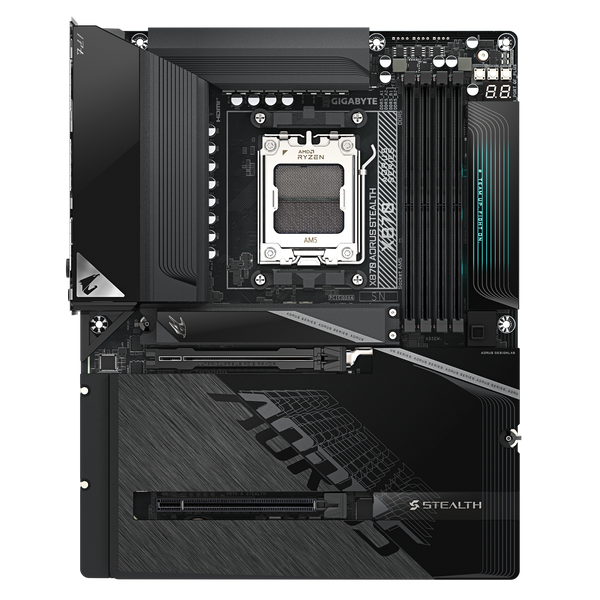

The X870 AORUS STEALTH is Gigabyte's premium back-connect (reverse connector) motherboard, designed for ultra-clean cable management and showcase PC builds while retaining high-end X870 features.
CPU & Chipset
- AMD X870 chipset
- AM5 socket
- Supports AMD Ryzen 9000, 8000, and 7000 Series processors.
Memory
- 4× DDR5 DIMM slots
- Up to 256GB DDR5
- DDR5 speeds up to 8200 MT/s (OC)
- Supports AMD EXPO and Intel XMP memory profiles.
Power Design
- 16+2+2 Digital VRM
- Built for Ryzen 7, Ryzen 9, and X3D processors
- 8-pin + 4-pin CPU power connectors.
Expansion Slots
- 1× PCIe 5.0 x16 graphics slot
- 1× PCIe 4.0 x16 (x4 mode) slot
- Reinforced PCIe design for heavy GPUs.
Storage
-
4× M.2 NVMe slots
- 2× PCIe 5.0 x4
- 2× PCIe 4.0 x4
- 2× SATA 6Gb/s ports
- RAID 0 / 1 / 5 / 10 support for NVMe SSDs.
Networking
- Wi-Fi 7 (Qualcomm QCNCM865)
- Bluetooth 5.4
- 5GbE LAN
- WiFi EZ-Plug quick-connect antenna system.

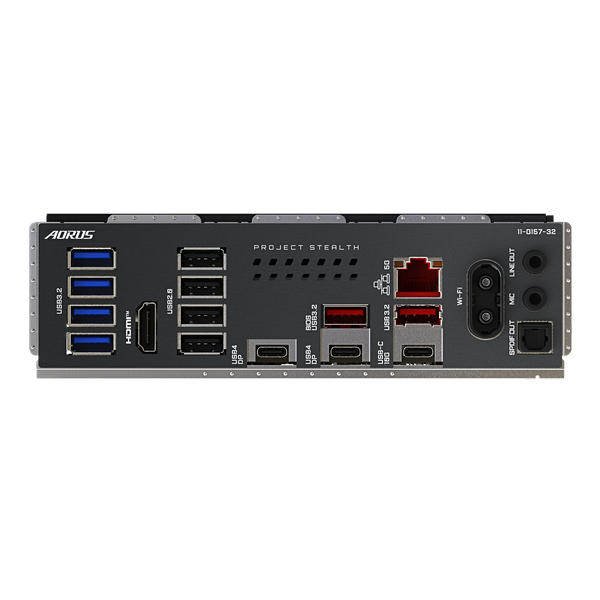

USB & Connectivity
- 2× USB4 Type-C (40Gbps)
- 1× USB-C 20Gbps front-panel header
- Additional USB 3.2 Gen2 and Gen1 ports
- HDMI 2.1 output
- DisplayPort Alt Mode through USB4.
Cooling Features
- VRM Thermal Armor Advanced
- M.2 Thermal Guard
- M.2 EZ-Flex cooling system
- Smart Fan 6 support
- Multiple fan, pump, and temperature sensor headers.
DIY-Friendly Features

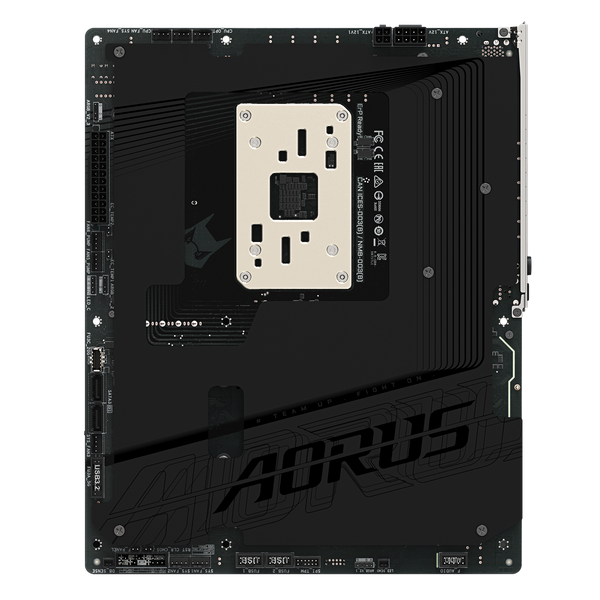

- STEALTH Back-Connect Design (rear-mounted connectors)
- PCIe EZ-Latch Plus
- M.2 EZ-Latch Plus
- M.2 EZ-Latch Click
- Q-Flash Plus
- Onboard Power & Reset buttons
- DriverBIOS with preloaded Wi-Fi drivers
- EZ Debug Zone.
Audio
- Realtek ALC1220
- 7.1-channel HD Audio
- Optical S/PDIF Out
- DSD audio support.
Physical Specifications
- Form Factor: ATX
- Dimensions: 30.5 × 24.4 cm (W × L)
Quick Selling Points
- STEALTH back-connect design for hidden cables
- 5GbE LAN + Wi-Fi 7
- Dual USB4 40Gbps
- 16+2+2 VRM
- 4× M.2 SSD slots
- PCIe 5.0 GPU support
- 256GB DDR5 support
- Premium showcase-build motherboard.
