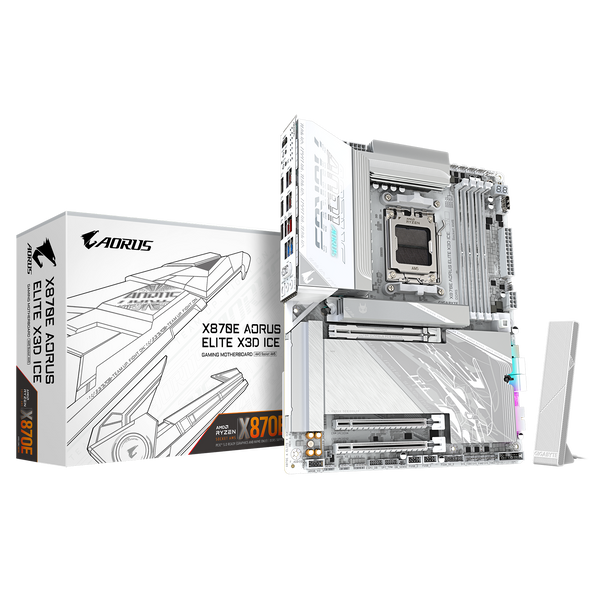

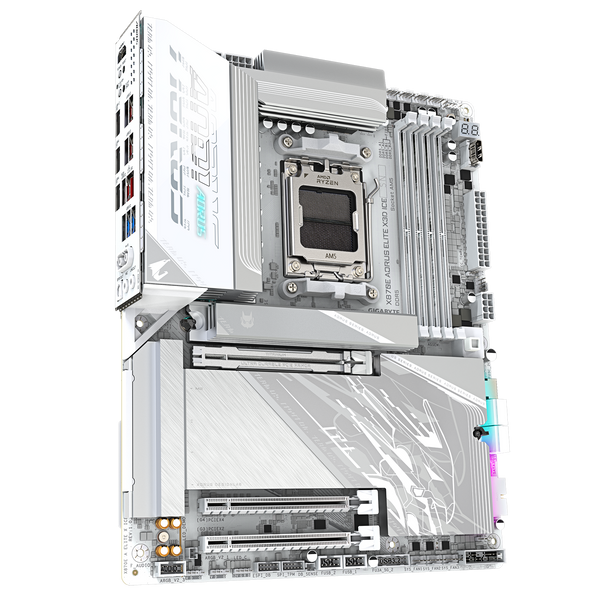

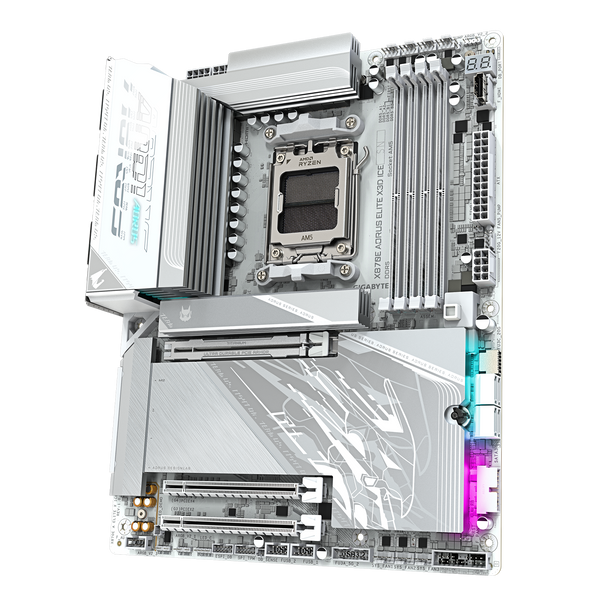

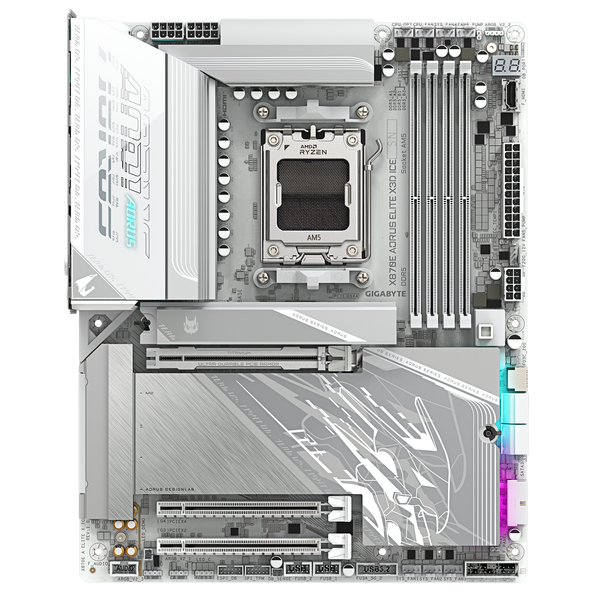

Designed specifically for Ryzen X3D gaming CPUs, the X870E AORUS ELITE X3D adds Gigabyte's X3D Turbo Mode 2.0, 5GbE networking, upgraded memory tuning, and a PCIe lane layout that helps avoid GPU bandwidth reductions when using multiple NVMe SSDs.
CPU & Chipset
- AMD X870E chipset
- AM5 socket
- Supports AMD Ryzen 9000, 8000, and 7000 Series processors
- Optimized for Ryzen X3D processors and gaming-focused builds.
Memory
- 4× DDR5 DIMM slots
- Up to 256GB DDR5
- DDR5 speeds up to 9000 MT/s (OC)
- Supports AMD EXPO and Intel XMP memory profiles.
Power Design
- 16+2+2 Digital VRM
- 80A Smart Power Stages
- Dual 8-pin CPU power connectors
- Built for Ryzen 7, Ryzen 9 and X3D CPUs.
Expansion Slots
- 1× PCIe 5.0 x16 GPU slot
- 1× PCIe 4.0 x16 (x4 mode)
- 1× PCIe 3.0 x16 (x2 mode)
- PCIe EZ-Latch Plus quick-release mechanism.
Storage
-
4× M.2 NVMe slots
- 2× PCIe 5.0 x4
- 2× PCIe 4.0 x4
- 4× SATA 6Gb/s
- RAID 0 / 1 / 5 / 10 support.
Networking
- Realtek 5GbE LAN
- Wi-Fi 7 (Qualcomm QCNCM865)
- Bluetooth 5.4
- Supports 2.4GHz, 5GHz and 6GHz bands.

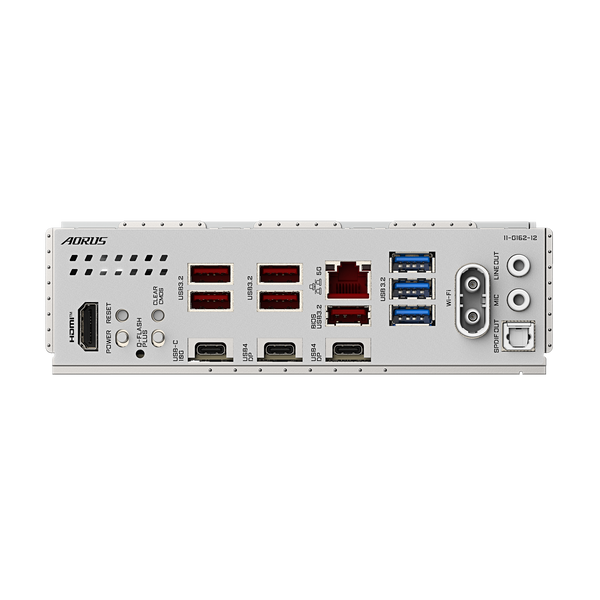

USB & Connectivity
- 2× USB4 Type-C (40Gbps)
- Front USB-C 20Gbps header
- Front USB-C supports up to 65W PD 3.0 / QC 4+ charging
- HDMI 2.1 output
- Multiple USB 3.2 Gen 2 ports.
X3D Gaming Features
- X3D Turbo Mode 2.0
- AI-assisted gaming optimization
- Dynamic tuning of CPU frequency, power, thermals and core allocation
- Developed specifically for Ryzen X3D gaming processors.
Cooling Features
- VRM Thermal Armor
- Large M.2 Thermal Guard heatsinks
- Smart Fan 6
- Multiple fan, pump and temperature sensor headers.
DIY Features
- PCIe EZ-Latch Plus
- M.2 EZ-Latch Plus
- Q-Flash Plus
- Onboard Power Button
- Onboard Reset Button
- Clear CMOS button
- DriverBIOS integrated Wi-Fi driver support.
Audio
- Realtek ALC1220
- 7.1-channel HD Audio
- Optical S/PDIF Out
- DSD audio support.
Physical Specifications
- Form Factor: ATX
- Dimensions: 30.5 × 24.4 cm (W × L)
