| Product Name |

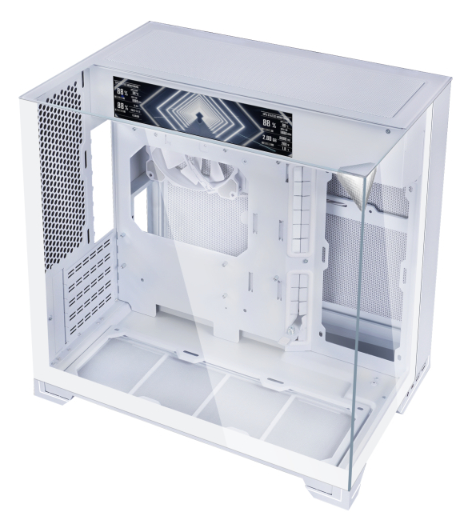

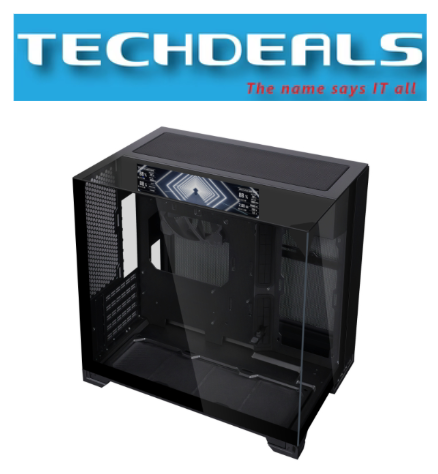

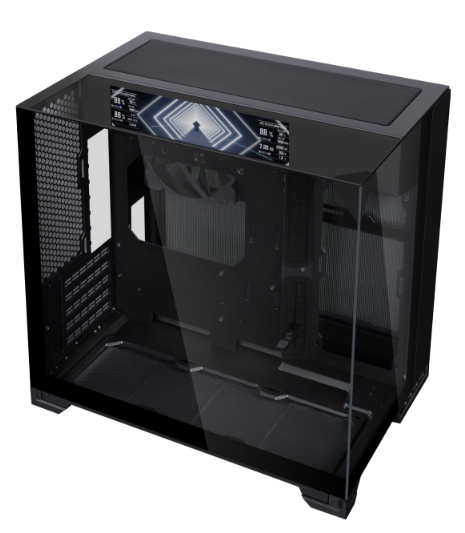

O11 Vision-M Digital |
O11 Vision-M Digital |
| Model Number |
O11VMDX |
O11VMDW |
| Color |
Black |
White |
| Case Type |
Micro-ATX Case |
Micro-ATX Case |
| Dimensions |
419.6 × 275.1 × 395.2mm |
419.6 × 275.1 × 395.2mm |
| Material |
Steel / 4.0mm Tempered Glass / 3.0mm Tempered Glass / Aluminum |
Steel / 4.0mm Tempered Glass / 3.0mm Tempered Glass / Aluminum |
| Motherboard Support |
Micro-ATX / Mini-ITX |
Micro-ATX / Mini-ITX |
| Back-Connect Motherboard |
No |
No |
| Expansion Slots |
5 |
5 |
| GPU Clearance |
Up to 410mm |
Up to 410mm |
| CPU Cooler Clearance |
Up to 162mm |
Up to 162mm |
| PSU Support |
ATX, under 182mm |
ATX, under 182mm |
| Storage |
1 × 3.5" HDD + 2 × 2.5" SSD OR 3 × 2.5" SSD |
1 × 3.5" HDD + 2 × 2.5" SSD OR 3 × 2.5" SSD |
| Top Fan Support |
3 × 120mm |
3 × 120mm |
| Side Fan Support |
2 × 120mm |
2 × 120mm |
| Second Chamber Fan Support |
1 × 140mm + 2 × 120mm |
1 × 140mm + 2 × 120mm |
| Bottom Fan Support |
3 × 120mm |
3 × 120mm |
| Rear Fan Support |
2 × 120mm |
2 × 120mm |
| Included Fan |
1 × 140mm PWM |
1 × 140mm PWM |
| Top Radiator Support |
240 / 360mm |
240 / 360mm |
| Side Radiator Support |
240mm |
240mm |
| Digital Screen |
Yes |
Yes |
| LCD Type |
IPS LCD |
IPS LCD |
| LCD Size |
9.2" |
9.2" |
| LCD Resolution |
1920 × 462 |
1920 × 462 |
| LCD Refresh Rate |
60Hz |
60Hz |
| LCD Brightness |
500 nits |
500 nits |
| LCD Rated Voltage |
5V |
5V |
| LCD Input Power |
3.8W |
3.8W |
| I/O Ports |
2 × USB 3.0 Type-A + 1 × USB 3.2 Type-C + Audio |
2 × USB 3.0 Type-A + 1 × USB 3.2 Type-C + Audio |
| Dust Filter |
Removable Bottom Dust Tray |
Removable Bottom Dust Tray |
| GPU Support |
Adjustable Anti-Sag Bracket |
Adjustable Anti-Sag Bracket |
| Warranty |
1 Year |
1 Year |
