MSI B850 GAMING PLUS WIFI

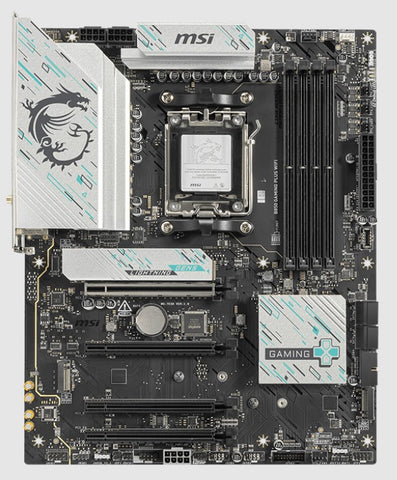

MSI B850 GAMING PLUS WIFI – AM5 ATX Motherboard
🎮 Unleash Your Gaming Potential
The MSI B850 GAMING PLUS WIFI is engineered for gamers and PC enthusiasts seeking robust performance, advanced connectivity, and user-friendly features. Designed to support the latest AMD Ryzen processors, this motherboard provides a solid foundation for high-performance gaming rigs.
🔧 Key Specifications:
-
Socket/CPU: AM5 – Supports AMD Ryzen™ 9000/8000/7000 Series Desktop Processors
-
Chipset: AMD B850
-
Memory: 4× DDR5 DIMM slots, up to 256GB, supports up to 8200+ MT/s (OC)
-
Expansion Slots:
-
1× PCIe 5.0 x16
-
1× PCIe 4.0 x4
-
2× PCIe 3.0 x1
-
-
Storage Options:
-
3× M.2 slots (1× PCIe 5.0 x4, 2× PCIe 4.0 x4/x2)
-
4× SATA 6Gb/s ports
-
-
Graphics Output: DisplayPort 1.2 (supports up to 4K resolution at 60Hz)
-
Audio: Realtek® ALC897 Codec, 7.1-Channel High Definition Audio
📡 Advanced Connectivity:
-
Networking:
-
5G LAN (Realtek® 8126VB)
-
Wi-Fi 7 (802.11be) + Bluetooth 5.4
-
-

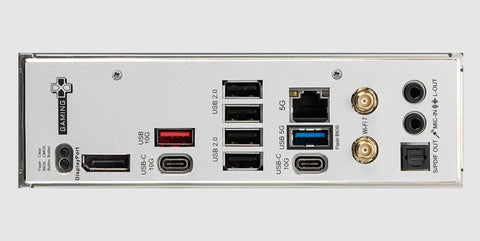

USB Ports:
-
Rear:
-
2× USB 10Gbps Type-C
-
1× USB 10Gbps Type-A
-
1× USB 5Gbps Type-A
-
4× USB 2.0 Type-A
-
-
Front:
-
1× USB 5Gbps Type-C
-
4× USB 5Gbps Type-A
-
4× USB 2.0
-
-
🛡️ Robust Power and Thermal Design:
-
Power Solution: 12+2+1 Duet Rail Power System
-
Cooling Features:
-
Extended Heatsink Design
-
M.2 Shield Frozr
-
7W/mK MOSFET Thermal Pads
-
Enlarged Chipset Heatsink
-
📏 Dimensions:
-
Form Factor: ATX
-
Dimensions: 30.5 cm × 24.4 cm
🛠️ EZ DIY Features:
-
EZ Antenna: Simplifies attachment of Wi-Fi antenna without rotation.
-
EZ Debug LED: Onboard LEDs indicate the source of problems for quick troubleshooting.
-
EZ M.2 Clip II: Facilitates tool-less installation and removal of M.2 SSDs.
💡 Why Choose the B850 GAMING PLUS WIFI?
Designed for gamers and PC enthusiasts, this motherboard combines high-end performance with user-friendly features. Its robust power delivery, advanced connectivity options, and comprehensive cooling solutions make it an ideal choice for building a future-proof system.
