COOLER MASTER MWE GOLD V3 650W NON MODULAR (5Y) | 750W/850W FULL MODULAR ATX3.1 PSU (5Y)

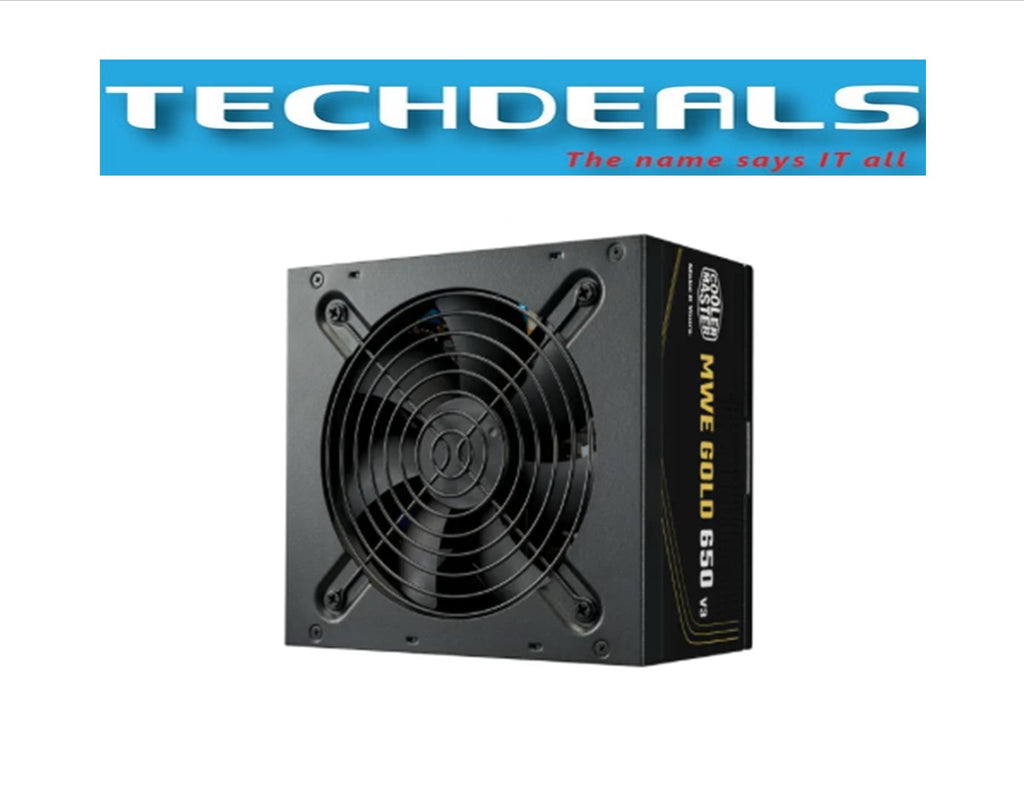

650WNONMODULAR:
- Quiet HDB fan - A hydrodynamic bearing fan delivers long-lasting quiet and effective cooling.
- 80 Plus Gold efficiency certification - This unit is certified to achieve more than 90% efficiency at typical loads in a 115V test.
- High temperature resilience - A 40 degrees C maximum operating temperature allows for pushing your machine to the limits with overclocking and other high-intensity applications.
- Embossed cable - An embossed cable texture provides a softer and overall improved grip with a pleasing aesthetic.
- ATX 3.1 support - Compliant with ATX 3.1 to fully support a peak power 1.5 times higher than the rated maximum wattage, this unit is ideal for use with the 40 series GPUs.
- Single +12V rail - All power comes from a single +12V source, ensuring consistent output through all connected cables.
- DC-to-DC technology - The DC-DC circuit design offers reliable, stable output to all connected components.
- 2 EPS Connectors - Two 4-pin EPS connectors are included for universal compatibility with current-gen motherboards.
- 5-year warranty - This unit comes with a standard limited manufacturing warranty of 5 years from the date of purchase.

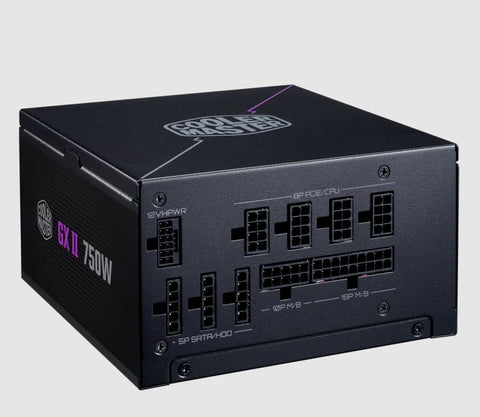

750W FULL MODULAR:
- Model MPX-7503-AFAG-2***
- ATX Version ATX 12V Ver. 3.0
- PFC Active PFC
- Input Voltage 100-240V
- Input Current 10-5A
- Input Frequency 50-60Hz
- Dimensions (L x W x H) 160 x 150 x 86 mm
- Fan Size 120mm
- Fan Bearing HDB
- Fan Speed 2500±10% RPM
- Efficiency ≥90% @ Typical Load
- 80 PLUS Rating 80 PLUS Gold
- ErP 2014 Lot 3 Yes
- Operating Temperature 0-40°C
- Power Good Signal 100 - 150 ms
- Hold Up Time ≥16ms at 80% Load
- MTBF >100,000 Hours
- Protections OPP, OVP, OTP, OCP, SCP, UVP, Surge and Inrush Protection
- Regulatory cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (based on region's request.)
- ATX 24 Pin Connectors 1
- EPS 4+4 Pin Connectors 1
- EPS 8 Pin Connector 1
- SATA Connectors 6
- Peripheral 4 Pin Connectors 2
- PCI-e 6+2 Pin Connectors 4
- 12VHPWR Connector 1
- Series GX Series
- 80 Plus Gold
- Modular Fully Modular
- Wattage Above 750W

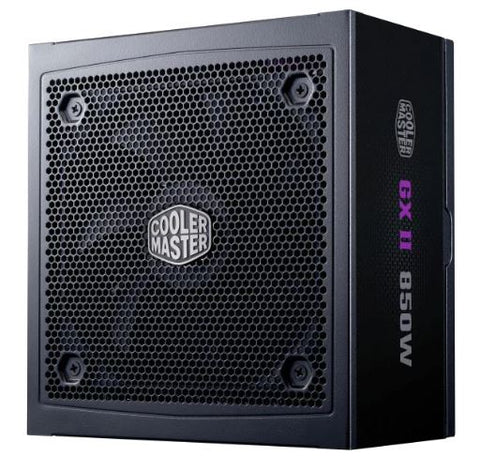

850W FULLMODULAR:
- Future-Ready Power Design Built for Intel ATX 3.1 and PCIe 5.1 platforms, ensuring seamless compatibility with the latest high-performance components.
- 12V-2x6 Connector Support Equipped with the updated 12V-2x6 GPU power connector to handle modern graphics card requirements safely and efficiently.
- Reliable Gold Efficiency Achieves up to 90% efficiency under typical loads with 80 PLUS Gold certification to reduce power loss and heat.
- Compact and Space-Smart Short 140mm depth fits comfortably in smaller cases while still delivering powerful performance.
- Whisper-Quiet Cooling Features a 120mm HDB fan for silent and efficient thermal performance even under load.
- Durable Japanese Capacitors Uses 100% Japanese capacitors rated for 105°C to ensure high thermal reliability and component longevity.
- Flat Black Modular Cables Clean, minimal cabling for optimized airflow and easy custom builds with full modular layout.
- Extreme Power Excursion Support Handles 235% total and 300% GPU power excursions—ideal for sudden load spikes in gaming or creator builds.
