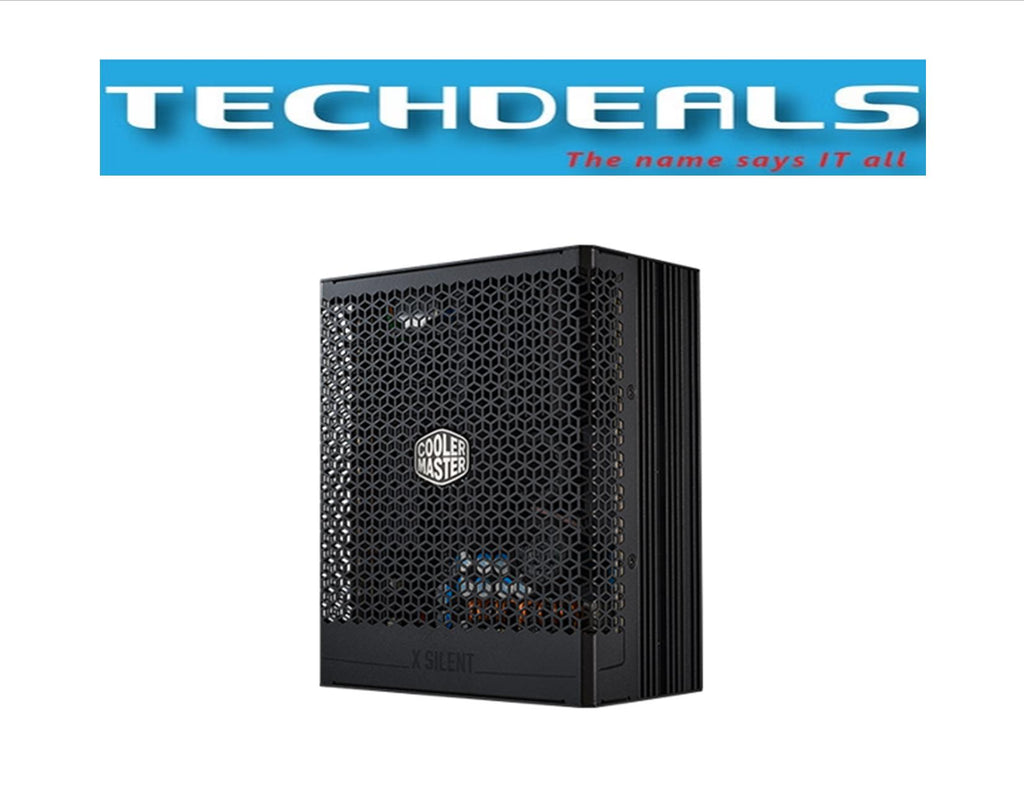

COOLER MASTER X SILENT EDGE PLATINUM 1100W FANLESS ATX 3.1 PSU (15Y)

Power Supply Specifications

Model: MPS-B001-AZBP
Series: X Series
Category: Above 750W
Wattage: 1100W
Form Factor: ATX
ATX Version: ATX 12V Ver. 3.1

Electrical Specifications

• Input Voltage: 200–240V (Range: 230V)

• Input Current: 6.1A (Max.)

• Input Frequency: 50–60Hz

• Efficiency: ≥ 94% @ Typical Load

• 80 PLUS Rating: Platinum

• Power Good Signal: 100–150 ms

• Hold-Up Time: ≥ 16ms

• MTBF: >100,000 Hours

• ErP 2014 Lot 3: Yes

• PFC: Active PFC

Operating Conditions

• Operating Temperature: 0–40°C

Protection Features

• OPP (Over Power Protection)

• OVP (Over Voltage Protection)

• OTP (Over Temperature Protection)

• OCP (Over Current Protection)

• SCP (Short Circuit Protection)

• UVP (Under Voltage Protection)

• Surge & Inrush Protection

Regulatory Certifications

• TUV, CE, CCC, EAC, RCM, UKCA/BIS, KC (varies by region)

Connectors

• ATX 24 Pin: 1

• EPS 4+4 Pin: 1

• EPS 8 Pin: 1

• PCIe 6+2 Pin: 4

• 12V-2x6 Connector: 1

• SATA: 12

• Peripheral 4 Pin (Molex): 4

• USB 10P Connector: 1

• PMBus 5 Pin Connector: 1

• External Fan 4 Pin Connector: 1

Physical Specifications

• Dimensions (L × W × H): 180 × 150 × 86 mm
