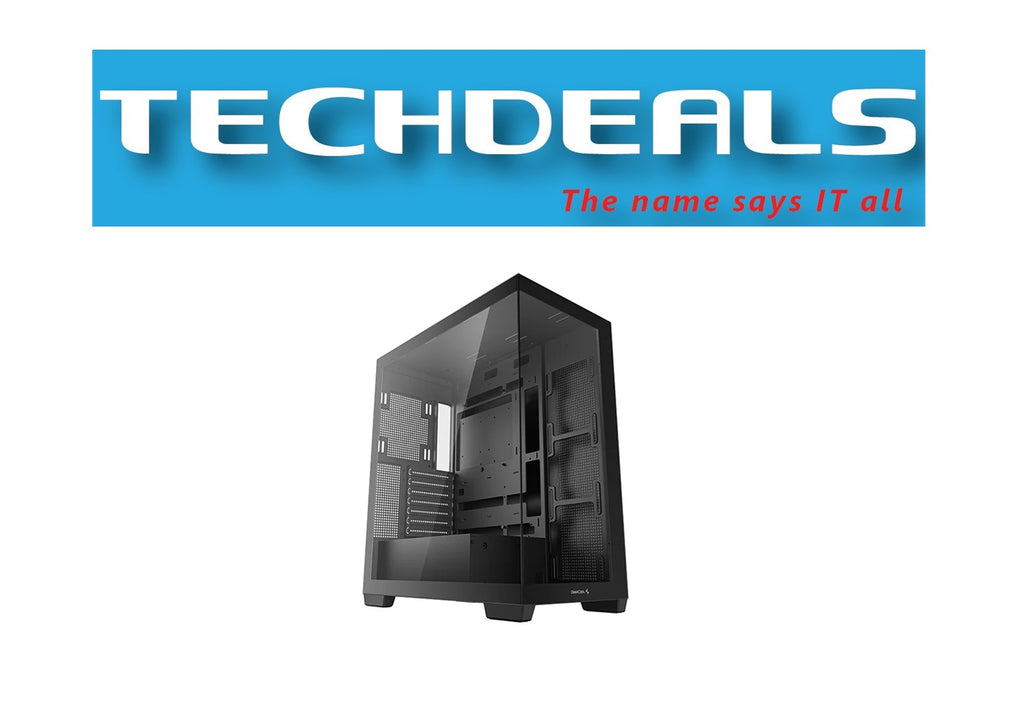

Deepcool CG580 4F V2
PC Case Specifications
Model: R-CG580-BKNDA0-G-1
EAN: 6933412774112
| Spec | Details |
|---|---|
| Dimensions | 437 × 235 × 501 mm (L × W × H) |
| Weight | 7.9 kg |
| Material | ABS, SGCC, Tempered Glass |
| Motherboard Support | ITX / Micro-ATX / ATX (rear I/O) |
| I/O Ports | 2 × USB 3.0, Audio, Power, Reset |
| Drive Bays | 2 × 3.5", 2+1 × 2.5" |
| Expansion Slots | 7 |
| Pre-installed Fans | None |
Fan Support
-
Top: 3 × 120 mm or 2 × 140 mm
-
Side: 3 × 120 mm
-
Rear: 1 × 120 mm or 1 × 140 mm
-
Bottom: 1 × 120 mm (shared with 3.5" HDD)
-
PSU Shroud: 2 × 120 mm
-
Front: Not supported
Radiator Support
-
Top: 120 / 140 / 240 / 280 / 360 mm
-
Side: 120 / 240 / 360 mm
-
Rear: 120 / 140 mm
-
Front: Not supported
Clearance Limits
-
CPU Cooler: up to 176 mm
-
GPU: up to 410 mm (262 mm if side 360 mm rad installed)
-
PSU: up to 210 mm (ATX PS2)
