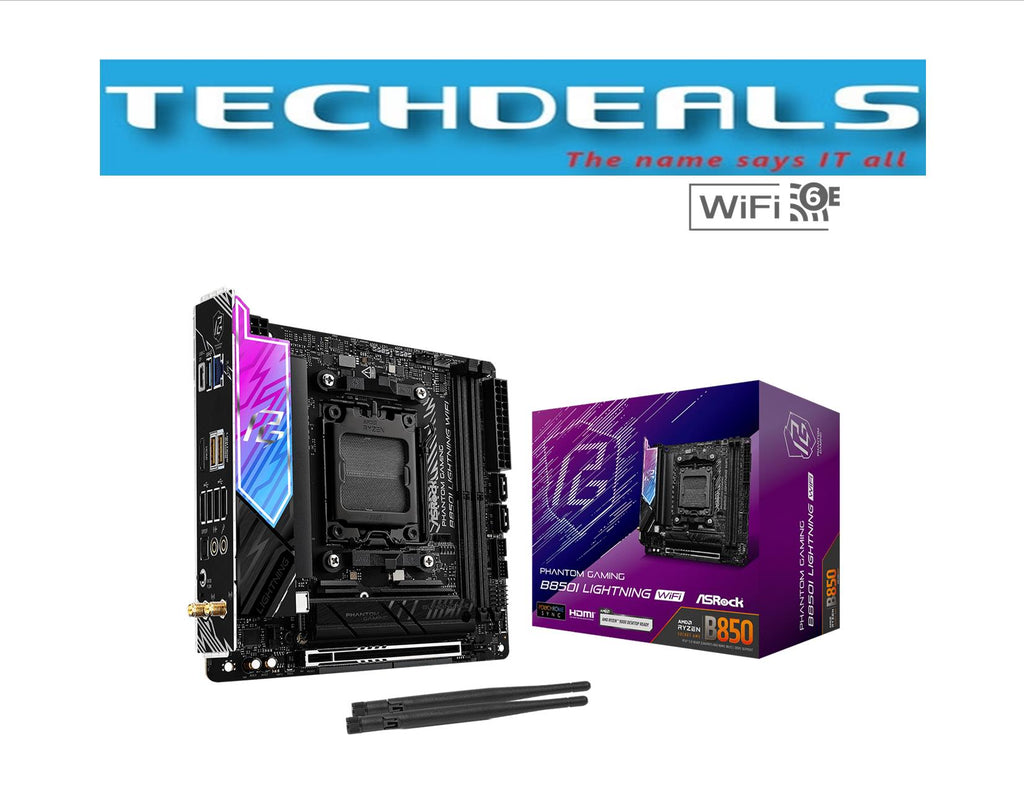

ASROCK B850I LIGHTNING WIFI
This ASRock Mini-ITX motherboard supports AMD Socket AM5 Ryzen™ 9000, 8000, and 7000 Series processors and features PCIe Gen5 for graphics and M.2 storage. It has a 10+1+1 power phase design with reinforced heatsinks and an integrated I/O shield for stable performance. Memory support includes dual-channel DDR5, 2 DIMM slots, up to 8200+ MHz (OC), and a maximum of 128GB, with support for XMP and EXPO overclocking profiles.

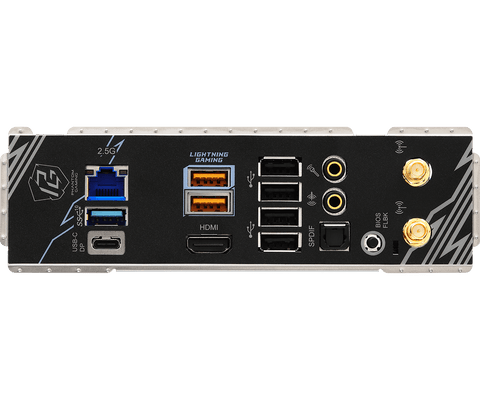

Graphics options include HDMI 2.1 (up to 4K 120Hz) and USB 3.2 Gen2 Type-C (up to 4K 60Hz via DP-alt mode, depending on CPU). Audio is powered by Realtek ALC1220 with Nahimic Audio and dedicated R/L PCB layers. Networking includes Killer 2.5G LAN, Wi-Fi 6E, Bluetooth 5.2, and ASRock Lightning Gaming Ports.
Expansion includes PCIe 5.0 x16 slot, M.2 slots, and SATA3 connectors with RAID support. USB connectivity includes USB4/3.2/2.0 ports, all with ESD protection. The motherboard also supports multiple fan and RGB headers, smart fan control, and BIOS Flashback for easy setup.
Accessories include SATA cables, Wi-Fi antennas, M.2 screws, and a thermistor cable. The board comes in a Mini-ITX form factor (6.7 × 6.7 in) with 8-layer PCB, supports Windows 10/11 64-bit, and is FCC, CE, and ErP/EuP ready.
