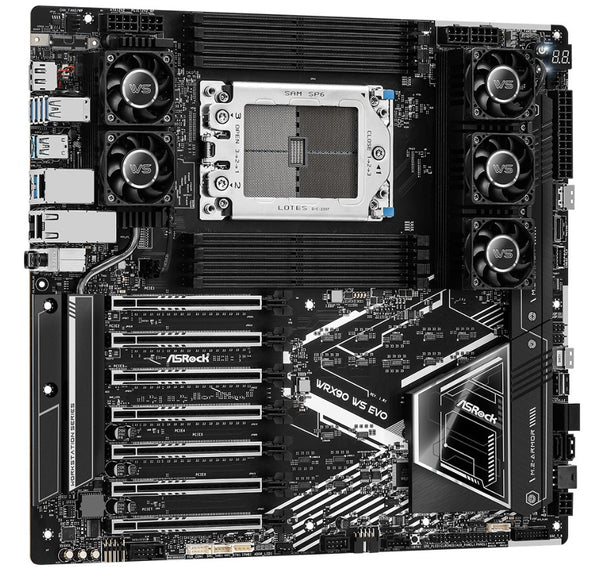

Core Specifications
-
CPU Socket: AMD Socket sTR5 (LGA 4844)
-
Supported Processors: AMD Ryzen™ Threadripper™ PRO 9000 and 7000 WX-Series processors
-
Chipset: AMD WRX90
-
Memory Support:
-
8x DDR5 DIMM slots
-
Supports Eight-Channel ECC Registered memory (RDIMM / RDIMM-3DS) up to 7600+ (OC)
-
Maximum capacity up to 2 TB
-
-
Power Phase Design: 18+3+3 Power Phase with 110A Smart Power Stage (SPS) for VCore
-
Expansion Slots: 7x PCI Express 5.0 x16 slots
-
Storage Connectivity:
-
1x Blazing M.2 (PCIe Gen5 x4)
-
1x Hyper M.2 (PCIe Gen4 x4)
-
2x MCIO Connectors (PCIe Gen5 x4)
-
2x SlimSAS Connectors (PCIe Gen4 x4)
-
4x SATA3 6.0 Gb/s ports
-
-
Networking: Dual Intel® X710 10-Gigabit LAN ports + 1x Dedicated IPMI LAN port for remote server management (via Aspeed AST2600 BMC)
-
Audio: Realtek ALC1220 7.1 Channel HD Audio with Nahimic Audio
-

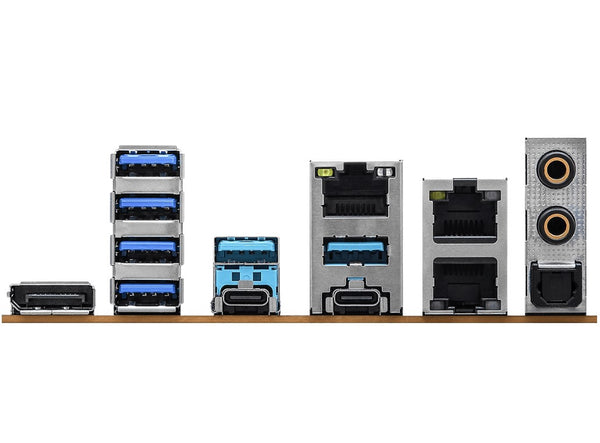

Rear I/O Connectivity: 2x USB4 Type-C ports (40 Gb/s), 4x USB 3.2 Gen2 Type-A ports, and 1x DisplayPort 1.1a (for BMC graphics output)
