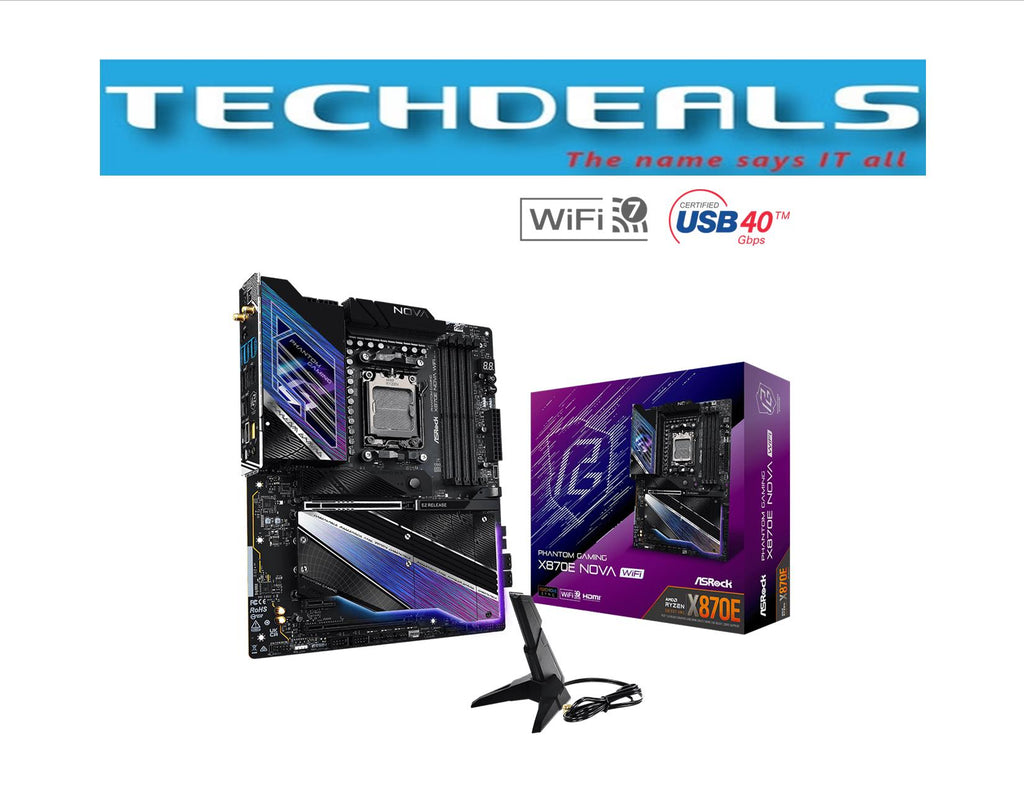

ASRock X870E NOVA WIFI
This ASRock ATX motherboard supports AMD Socket AM5 Ryzen™ 9000, 8000, and 7000 Series processors with PCIe Gen5 for graphics and M.2 storage. It features a 20+2+1 power phase design with server-grade PCB, reinforced heatsinks, and long-lasting capacitors for reliable performance. Memory support includes DDR5 dual-channel, 4 DIMM slots, up to 8200+ MHz (OC), and a maximum of 256GB, with support for XMP/EXPO overclocking.

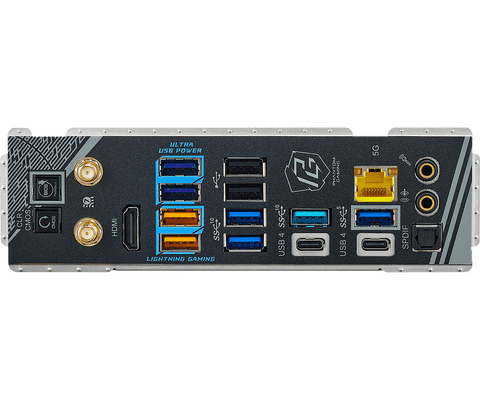

For graphics, it offers HDMI 2.1 (up to 4K 120Hz) and USB4 Type-C ports (up to 8K 30Hz, depending on CPU). Audio is premium with 7.1 CH HD Audio, Nahimic Audio, and high-quality DACs. Networking includes 5G LAN, Wi-Fi 7, and Bluetooth 5.4, plus ASRock Lightning Gaming Ports for ultra-fast connectivity.
Expansion includes PCIe 5.0 x16 slot, multiple PCIe 3.0 slots, M.2 and SATA3 storage, and RAID support. USB options include USB4 Type-C, USB 3.2, and USB 2.0 ports, all with ESD protection. The board also supports multiple fan and RGB headers, Dr. Debug, power/reset buttons, and BIOS Flashback for easy setup.
Accessories include SATA cables, Wi-Fi antenna, ARGB splitter, and thermistor cables. The board comes in ATX form factor (12 × 9.6 in), with 8-layer 2oz copper PCB, supports Windows 10/11 64-bit, and is FCC, CE, and ErP/EuP ready.
