šļø Processor & Platform
-
LGA1851 Socket: Purpose-built to support the latest IntelĀ® Coreā¢ Ultra Processors (Series 2).
-
ā” 16+1+1+1+1 Power Phase Design: Engineered with robust Dr.MOS for VCore+GT to deliver highly stable and reliable power distribution under sustained workloads.
š§ Memory & Expansion
-
š Next-Gen DDR5 Memory: Features 4 DDR5 DIMM slots utilizing Dual-Channel technology, pushing overclocked memory frequencies up to an extreme 9066+ MHz (OC).
-
š® PCIe 5.0 Support: Equipped with 1 primary PCIe 5.0 x16 slot for modern high-performance graphics cards, alongside 2 PCIe 4.0 x4 slots and 1 PCIe 4.0 x1 slot.
š¾ Storage & High-Speed I/O
-
šØ Blazing M.2 NVMe: Includes 1 hyper-fast Blazing M.2 socket running on PCIe Gen5 x4 infrastructure, coupled with 3 secondary Hyper M.2 slots (Gen4) and 4 SATA3 ports.
-

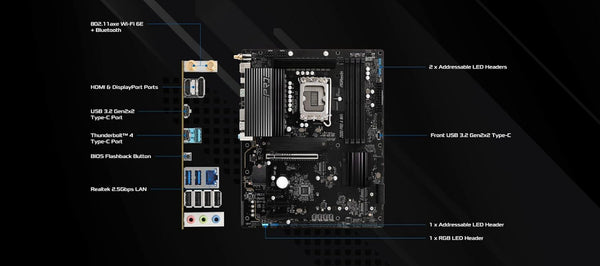

ā” Thunderboltā¢ 4 Connectivity: Features a built-in rear Thunderbolt 4/USB4 Type-C port capable of driving massive 40 Gb/s data bandwidth or external displays.
š Networking & Audio
-
š Realtek 2.5G LAN: Upgrades standard network speeds up to 2.5X the bandwidth for buffer-free gaming, content streaming, and massive file transfers.
-
š¶ Wi-Fi 6E + Bluetooth: Native onboard 802.11axe wireless solution leveraging the less-congested 6GHz band.
-
š 7.1 HD Audio: Driven by the Realtek ALC897 audio codec for crisp, high-definition surround sound output.
š ļø Durability & Customization
-
š”ļø Rock-Solid Lifespan: Upgraded with specialized 1000uF high-capacitance durable capacitors to minimize ripple fluctuations and secure clean power delivery.
-
š EZ Features: Outfitted with a dedicated physical BIOS Flashback button on the rear panel for seamless, processor-less firmware upgrades.
-
š Polychrome RGB: Integrated addressable and standard RGB headers to connect and synchronize lighting across compatible fans, liquid coolers, and LED strips.
