| Brand |
ASUS |
| Series |
PRIME |
| Model |

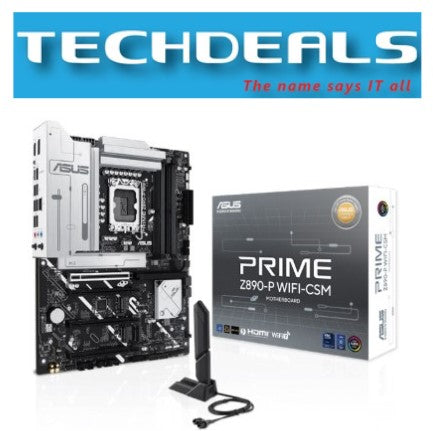

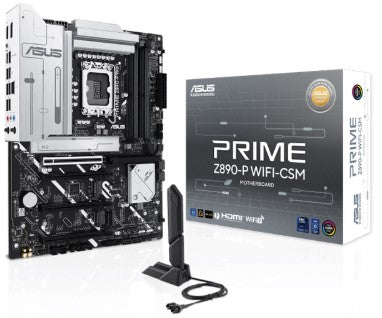

PRIME Z890-P WIFI-CSM |
| Part Number |
90MB1I70-M0UAYC |
| Form Factor |
ATX |
| Dimensions |
30.5 × 24.4 cm (L × W) |
| CPU Socket |
Intel LGA1851 |
| CPU Support |
Intel Core Ultra Processors (Series 2) |
| Chipset |
Intel Z890 |
| Memory |
4 × DDR5 DIMM |
| Maximum Memory |
Up to 256GB |
| Memory Speed |
Up to DDR5-9066+ MT/s (OC) |
| Memory Technology |
XMP, ASUS AEMP III, CUDIMM |
| PCIe x16 |
1 × PCIe 5.0 x16 |
| Additional PCIe |
PCIe 4.0 slots |
| M.2 Slots |
4 × M.2 |
| M.2 Interface |
PCIe 5.0 / PCIe 4.0 |
| SATA |
4 × SATA 6Gb/s |
| LAN |
Realtek 2.5Gb Ethernet |
| Wi-Fi |
Wi-Fi 7 |
| Bluetooth |
Bluetooth 5.4 |
| USB-C |
USB 20Gbps Type-C |
| Thunderbolt |
Thunderbolt 4 header |
| Audio |
Realtek 7.1-channel HD Audio |
| Display Output |
HDMI / DisplayPort |
| RGB |
ASUS Aura Sync |
| BIOS |
UEFI AMI BIOS |
