| Graphics Engine |

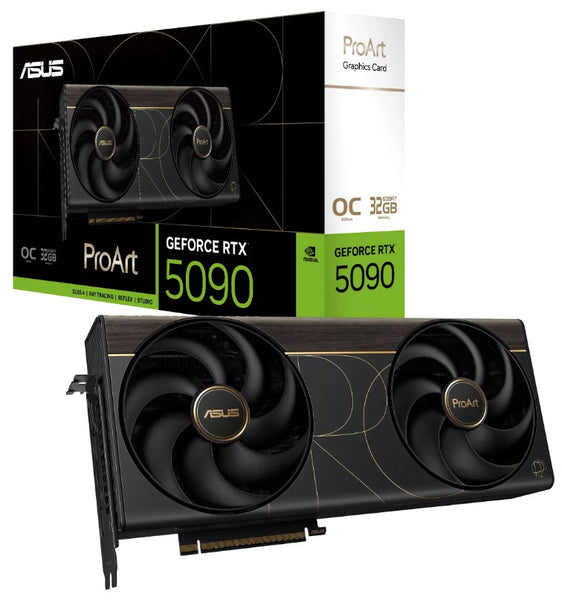

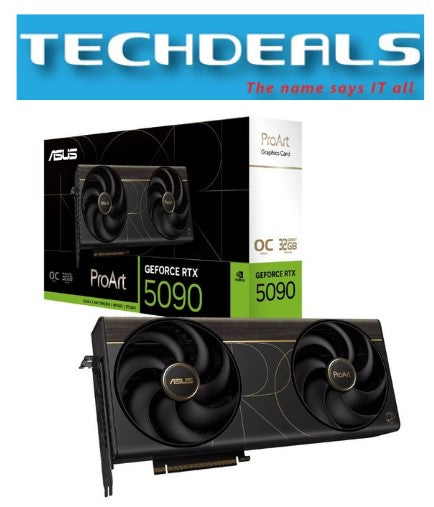

NVIDIA® GeForce RTX™ 5090 |
| GPU Architecture |
NVIDIA Blackwell |
| CUDA Cores |
21,760 |
| AI Performance |
3,352 TOPs |
| Bus Standard |
PCI Express 5.0 |
| Video Memory |
32GB GDDR7 |
| Memory Speed |
28 Gbps |
| Memory Interface |
512-bit |
| Engine Clock |
OC Mode: 2512 MHz / Default: 2482 MHz Boost Clock |
| Digital Max Resolution |
7680 × 4320 |
| Display Outputs |
2 × DisplayPort 2.1b + 1 × HDMI 2.1b + 1 × USB Type-C |
| Maximum Displays |
4 |
| HDCP Support |
HDCP 2.3 |
| NVLink / CrossFire |
No |
| Cooling |
Dual 115mm Axial-tech Fans + Vapor Chamber + Liquid Metal |
| Card Dimensions |
304 × 140 × 50 mm |
| Slot |
2.5-slot |
| Power Connector |
1 × 16-pin |
| Recommended PSU |
1000W |
| SFF Ready |
Yes |
