| Brand |
ASUS ROG |
| Model |

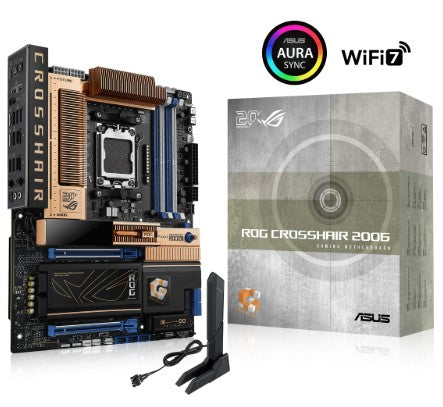

ROG CROSSHAIR 2006 |
| Part Number |
90MB1PP0-M0UAY0 |
| Edition |
ROG 20th Anniversary |
| CPU Socket |
AMD AM5 |
| Chipset |
AMD X870E |
| CPU Support |
AMD Ryzen 9000 / 8000 / 7000 Series |
| Form Factor |
ATX |
| Motherboard Dimensions |
30.5 × 24.4 cm |
| Memory Type |
DDR5 |
| Memory Slots |
4 × DIMM |
| Maximum Memory |
Up to 256GB |
| Memory Speed |
Up to DDR5-9600+ MT/s OC |
| Memory Technology |
AMD EXPO, ASUS AEMP, NitroPath DRAM Technology, DIMM Fit |
| PCIe x16 Slots |
2 × PCIe 5.0 x16 |
| Additional PCIe Slots |
PCIe 4.0 expansion slots |
| M.2 Slots |
5 × M.2 |
| M.2 PCIe 5.0 |
2 × PCIe 5.0 x4 |
| M.2 PCIe 4.0 |
2 × PCIe 4.0 x4 + 1 × PCIe 4.0 x2 |
| SATA |
4 × SATA 6Gb/s |
| SlimSAS |
1 × SlimSAS PCIe 4.0 x4 |
| Ethernet |
10GbE + 5GbE |
| WiFi |
WiFi 7 |
| Bluetooth |
Bluetooth 5.4 |
| USB4 |
2 × USB4 40Gbps Type-C |
| Rear USB |
USB 10Gbps Type-A / Type-C |
| Front USB |
2 × USB 20Gbps Type-C |
| USB Fast Charging |
Up to 60W Quick Charge 4+ |
| Audio Codec |
ROG SupremeFX / Realtek ALC4082 |
| DAC |
ESS ES9219 Quad DAC |
| Audio Support |
7.1-channel HD Audio |
| Power Design |
20+2+2 Power Stages |
| CPU Power |
Dual ProCool II power connectors |
| OLED Display |
2-inch OLED LiveDash display |
| BIOS Features |
BIOS FlashBack, Clear CMOS, Dual BIOS |
| Cooling Features |
VRM heatsink, M.2 heatsinks, Fan Xpert |
| Special Design |
20th Anniversary ROG retro copper/blue design |
| Motherboard Weight |
Approx. 2.51 kg |
| Retail Package Size |
Approx. 37 × 31.2 × 10.8 cm |
| Gross Package Weight |
Approx. 5.57 kg |
| Warranty |
Local ASUS / distributor warranty according to supplied stock |
