| Graphics Engine |

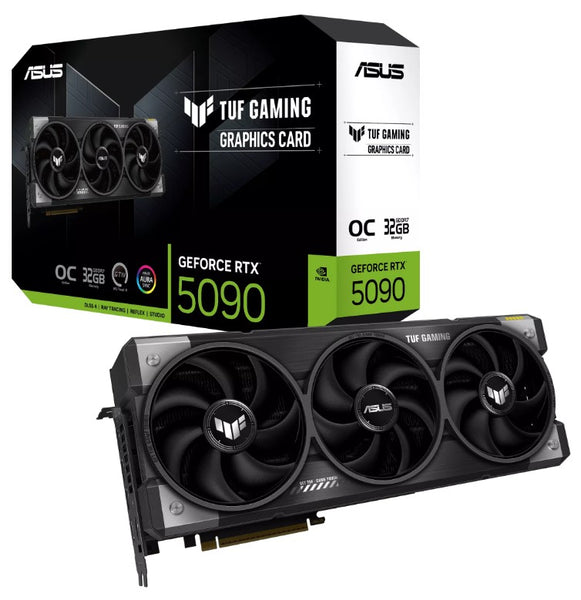

NVIDIA® GeForce RTX™ 5090 |
| GPU Architecture |
NVIDIA Blackwell |
| CUDA Cores |
21,760 |
| AI Performance |
3,352 TOPs |
| Bus Standard |
PCI Express 5.0 |
| Video Memory |
32GB GDDR7 |
| Memory Speed |
28 Gbps |
| Memory Interface |
512-bit |
| Engine Clock |
OC Mode: 2580 MHz / Default Mode: 2550 MHz Boost Clock |
| Digital Max Resolution |
7680 × 4320 |
| Display Outputs |
3 × DisplayPort 2.1b + 2 × HDMI 2.1b |
| Maximum Displays |
4 |
| HDCP Support |
HDCP 2.3 |
| NVLink / CrossFire |
No |
| Cooling |
Triple Axial-tech Fans + Vapor Chamber + 12 Heatpipes |
| Card Dimensions |
348 × 146 × 72 mm |
| Slot |
3.6-slot |
| Power Connector |
1 × 16-pin |
| Recommended PSU |
1000W |
| Power Delivery |
High-quality power components |
| AURA Sync |
ARGB |
| Software |
ASUS GPU Tweak III, MuseTree, GeForce Game Ready Driver, Studio Driver |
