| Model |

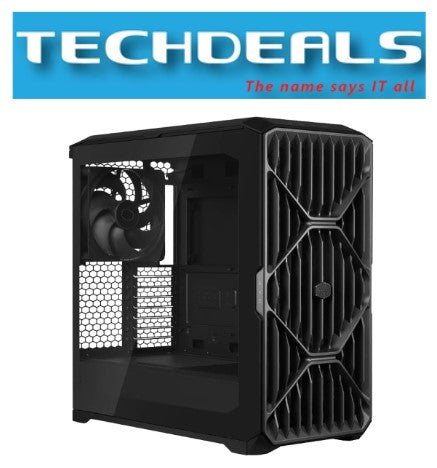

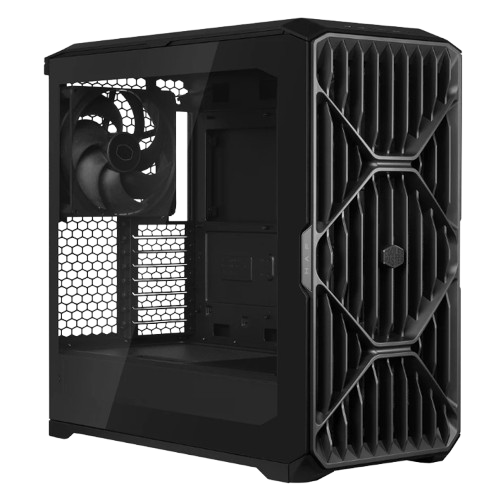

HAF II 500 ARGB Tempered Glass |
| Part Number |
H500G2-KGNN-S00 |
| Case Type |
Mid Tower |
| Colour |
Black |
| Side Panel |
Tempered Glass |
| Dimensions (L × W × H) |
557 × 262 × 548 mm |
| Volume |
79.98 L |
| Motherboard Support |
Mini-ITX, Mini-DTX, Micro-ATX, ATX, CEB, E-ATX |
| E-ATX Support |
Up to 310 mm wide |
| Expansion Slots |
8 |
| Pre-installed Front Fans |
2 × 220 mm Mighty40 F220 |
| Pre-installed Rear Fan |
1 × 180 mm Mighty40 V180 |
| Top Fan Support |
3 × 120/140 mm or 2 × 160/180 mm |
| Front Fan Support |
2 × 220 mm; with MasterRail: 3 × 120/140 mm or 2 × 160/180 mm |
| Rear Fan Support |
1 × 180 mm |
| Top Radiator Support |
240 / 280 / 360 mm |
| Front Radiator Support |
240 / 280 / 360 mm with MasterRail |
| CPU Cooler Clearance |
220 mm AMD / 221 mm Intel |
| GPU Clearance |
430 mm with stock 220 mm fans |
| PSU Clearance |
150 mm / 210 mm depending on drive orientation |
| GPU Thickness Support |
72 mm for 2 GPUs / 40 mm for 4 GPUs |
| Drive Bays |
Up to 3 × 3.5" + 6 × 2.5" |
| Fan Hub |
6 × PWM + 6 × ARGB |
| Fan Hub Power |
54 W |
| Front I/O |
1 × USB 3.2 Gen 2×2 Type-C + 2 × USB 3.2 Gen 1 Type-A |
| Audio |
1 × 3.5 mm Headset Jack |
| Dust Filters |
Top / Front / Bottom PSU |
| Cable Routing Clearance |
15–40 mm |
| GPU Support Bracket |
Yes |
| ARGB |
Yes |
| Warranty |
2 Years Case / 5 Years Fans |
