| Specification | Black | White |
|---|---|---|

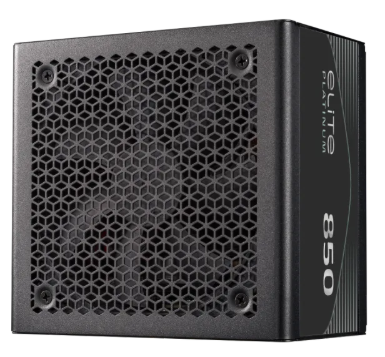

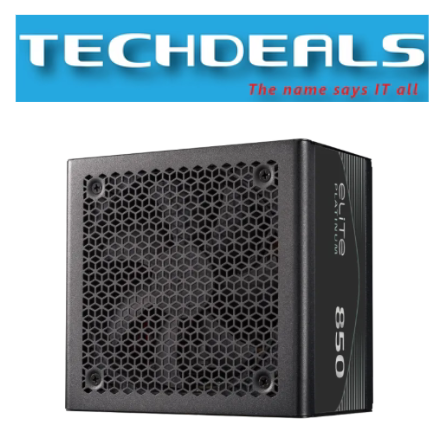

| Product Name | ELITE PLATINUM 850 | ELITE PLATINUM 850 |
| Part Number | MPE-85F1-AFP-C3B0CUK | MPE-85F1-AFP-C3W0CUK |
| Color | Black | White |
| Wattage | 850W | 850W |
| Form Factor | ATX | ATX |
| ATX Version | ATX 3.1 | ATX 3.1 |
| PCIe Version | PCIe 5.1 Ready | PCIe 5.1 Ready |
| Efficiency | 80 PLUS Platinum | 80 PLUS Platinum |
| Typical Efficiency | ≥92% | ≥92% |
| Modular | Fully Modular | Fully Modular |
| PFC | Active PFC | Active PFC |
| Input Voltage | 100–240V | 100–240V |
| Input Current | 12–6A | 12–6A |
| Input Frequency | 50–60Hz | 50–60Hz |
| Dimensions | 140 × 150 × 86mm | 140 × 150 × 86mm |
| Fan Size | 120mm | 120mm |
| Fan Bearing | Rifle Bearing | Rifle Bearing |
| Operating Temperature | 0–50°C | 0–50°C |
| Power Good Signal | 100–150ms | 100–150ms |
| Hold-Up Time | ≥11ms @ 100% Load | ≥11ms @ 100% Load |
| MTBF | >100,000 hours @ 25°C | >100,000 hours @ 25°C |
| ATX 24-Pin | 1 | 1 |
| EPS 4+4-Pin | 1 | 1 |
| EPS 8-Pin | 1 | 1 |
| PCIe 6+2-Pin | 3 | 3 |
| 12V-2x6 | 1 | 1 |
| SATA / Peripheral | 9 total | 9 total |
| Protection | SCP / OVP / UVP / OCP / OPP / OTP | SCP / OVP / UVP / OCP / OPP / OTP |
| Warranty | 12 Years | 12 Years |
