| Model |

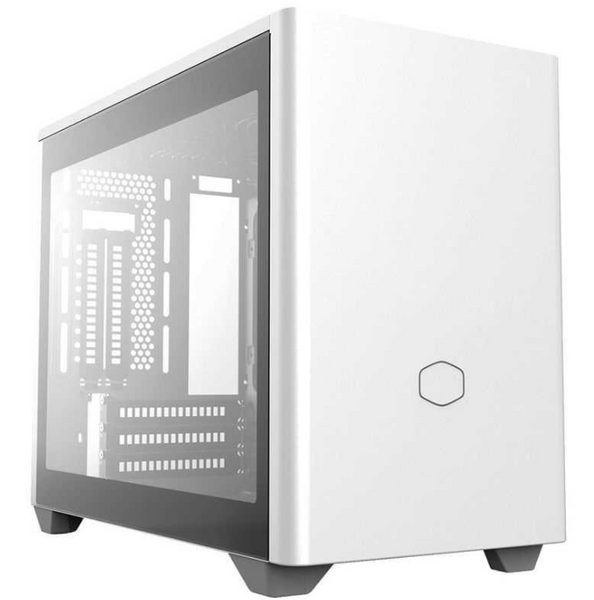

MasterBox NR200P |
| Part Number |
MCB-NR200P-WGNN-S00 |
| Case Type |
Mini-ITX / SFF |
| Colour |
White / Grey |
| Materials |
SGCC Steel, Mesh, ABS Plastic |
| Side Panels |
Tempered Glass + Vented Steel Panel |
| Dimensions (L × W × H) |
376 × 185 × 292 mm |
| Dimensions Without Protrusions |
360 × 185 × 274 mm |
| Volume |
18.25 L |
| Motherboard Support |
Mini-ITX / Mini-DTX |
| Maximum Motherboard Size |
244 × 226 mm |
| Expansion Slots |
3 |
| PSU Support |
SFX / SFX-L |
| CPU Cooler Clearance |
155 mm with Steel Panel / 153 mm with TG Panel |
| GPU Length Clearance |
330 mm |
| GPU Height Clearance |
156 mm |
| GPU Width Clearance |
60 mm / Triple-Slot |
| 3.5" HDD Bays |
1 (Max. 2) |
| 2.5"/3.5" Combo Bay |
1 |
| 2.5" SSD Bays |
2 (Max. 3) |
| Pre-installed Fans |
2 × 120 mm SickleFlow PWM Fans |
| Top Fan Support |
2 × 120 mm |
| Side Fan Support |
2 × 120/140 mm |
| Bottom Fan Support |
|
