| Product Name |

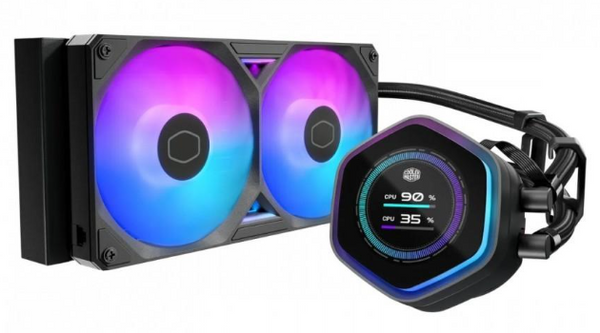

MasterLiquid Atmos II LCD ARGB 240 |

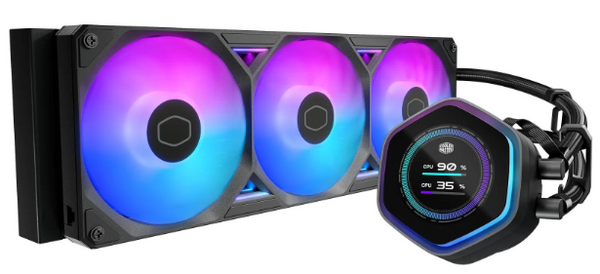

MasterLiquid Atmos II LCD ARGB 360 |
| Part Number |
MLX-D24M-A25SZ-L1 |
MLX-D36M-A25SZ-L1 |
| Color |
Black |
Black |
| Cooler Type |
AIO Liquid Cooler |
AIO Liquid Cooler |
| Radiator Size |
240mm |
360mm |
| Radiator Material |
Aluminum |
Aluminum |
| Radiator Dimensions |
277 × 119.2 × 27mm |
394 × 119.2 × 27mm |
| Pump Dimensions |
92.5 × 87 × 38.5mm |
92.5 × 87 × 38.5mm |
| Pump Speed |
3400 ± 300 RPM |
3400 ± 300 RPM |
| Pump Noise |
25 dBA Max |
25 dBA Max |
| Pump MTTF |
>210,000 hours |
>210,000 hours |
| Pump Connector |
3-Pin ARGB + 4-Pin PWM |
3-Pin ARGB + 4-Pin PWM |
| Tube Length |
350mm |
400mm |
| Fan Type |
SickleFlow Edge ARGB |
SickleFlow Edge ARGB |
| Fan Quantity |
2 |
3 |
| Fan Dimensions |
241 × 122 × 26.5mm |
361 × 122 × 26.5mm |
| Fan Speed |
690–2500 RPM ±15% |
690–2500 RPM ±15% |
| Airflow |
141.4 CFM |
190 CFM |
| Air Pressure |
3.61 mmH₂O |
3.61 mmH₂O |
| Fan Noise |
36 dBA Max |
38.5 dBA Max |
| Fan Bearing |
Loop Dynamic Bearing |
Loop Dynamic Bearing |
| Fan MTTF |
>160,000 hours |
>160,000 hours |
| Fan Connector |
7-Pin PWM + ARGB |
7-Pin PWM + ARGB |
| Lighting |
Addressable Gen 2 RGB |
Addressable Gen 2 RGB |
| LCD Screen |
2.1" |
2.1" |
| LCD Resolution |
480 × 480 |
480 × 480 |
| LCD Refresh Rate |
60Hz |
60Hz |
| LCD Brightness |
300 cd/m² |
300 cd/m² |
| LCD Connection |
USB Type-C to motherboard 9-pin |
USB Type-C to motherboard 9-pin |
| LCD Software |
MasterCTRL |
MasterCTRL |
| CPU Support |
Intel LGA 1851/1700/1200/1150/1151/1155/1156; AMD AM5/AM4 |
Intel LGA 1851/1700/1200/1150/1151/1155/1156; AMD AM5/AM4 |
| Thermal Paste |
CryoFuze included |
CryoFuze included |
| Warranty |
6 Years |
6 Years |
