| Specification | Details |
|---|---|

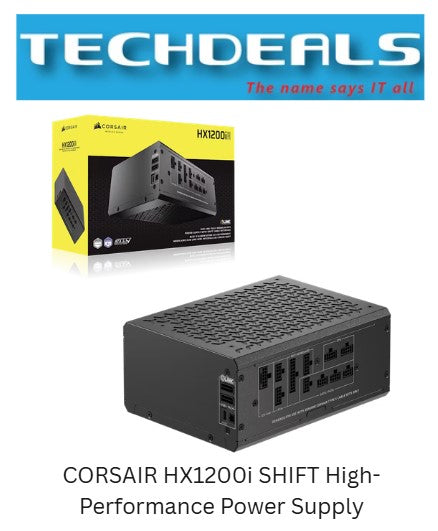

| Model | HX1200i SHIFT |
| Series | HXi SHIFT |
| Wattage | 1200W Continuous |
| Form Factor | ATX |
| Efficiency | Cybenetics Platinum |
| Noise Rating | Cybenetics A+ |
| ATX Standard | ATX 3.1 |
| PCIe Standard | PCIe 5.1 |
| Modular Design | Fully Modular |
| Fan | 140mm Fluid Dynamic Bearing |
| Zero RPM Mode | Yes |
| Capacitors | 100% Japanese 105°C |
| Digital Monitoring | Yes (Corsair iCUE) |
| Warranty | 10 Years |
| Measurement | Size |
|---|---|
| Length | 180 mm |
| Width | 150 mm |
| Height | 86 mm |
| Rail | Output |
|---|---|
| +3.3V | 25A |
| +5V | 25A |
| +12V | 100A |
| +5VSB | 3.5A |
| Combined +12V Output | 1200W |
| Total Output | 1200W |
| Connector Type | Quantity |
|---|---|
| 24-Pin ATX | 1 |
| EPS 8-Pin (4+4) | 2 |
| Native 12V-2x6 | 1 |
| PCIe 8-Pin (6+2) | Multiple |
| SATA Power | Multiple |
| Peripheral (Molex) | Multiple |
| USB Interface (iCUE) | Included |
| iCUE LINK Hub Function | Integrated |
