| Specification | Details |
|---|---|

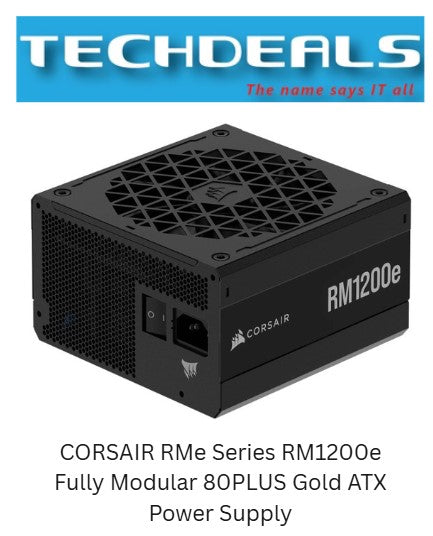

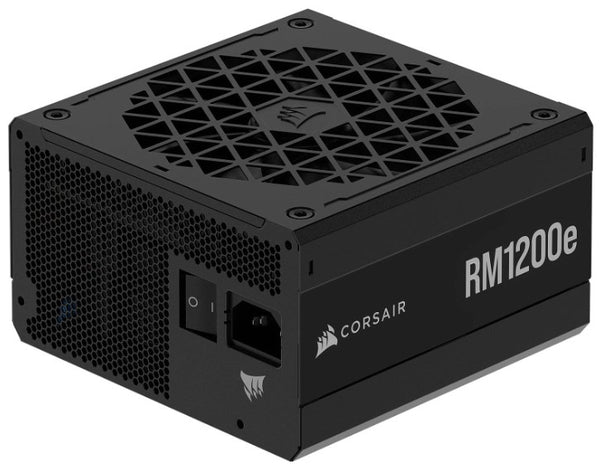

| Model | RM1200e (RMe Series) |
| Wattage | 1200W Continuous Power |
| Efficiency | 80 PLUS Gold |
| Form Factor | ATX |
| ATX Standard | ATX 3.1 Certified |
| PCIe Standard | PCIe 5.1 |
| Modular | Fully Modular |
| Fan Size | 120mm Rifle Bearing Fan |
| Zero RPM Mode | Yes |
| Capacitors | 100% Japanese 105°C Electrolytic Capacitors |
| Topology | LLC Resonant + DC-DC |
| MTBF | 100,000 Hours |
| Input Voltage | 100V–240V |
| Warranty | 10 Years |
| Rail | Max Current | Max Power |
|---|---|---|
| +3.3V | 20A | 150W |
| +5V | 20A | 150W Shared |
| +12V | 100A | 1200W |
| +5VSB | 3A | 15W |
| Total Output | — | 1200W |
| Specification | Details |
|---|---|
| Length | 150 mm |
| Width | 150 mm |
| Height | 86 mm |
| Cable | Quantity |
|---|---|
| 24-Pin ATX | 1 |
| EPS 8-Pin (4+4) | 2 |
| Native 12V-2x6 (12+4) GPU | 1 |
| PCIe 8-Pin (6+2) | 6 Total Connectors |
| SATA Power | 7 Connectors |
| Peripheral (Molex) | 4 Connectors |
