| Specification | Details |
|---|---|

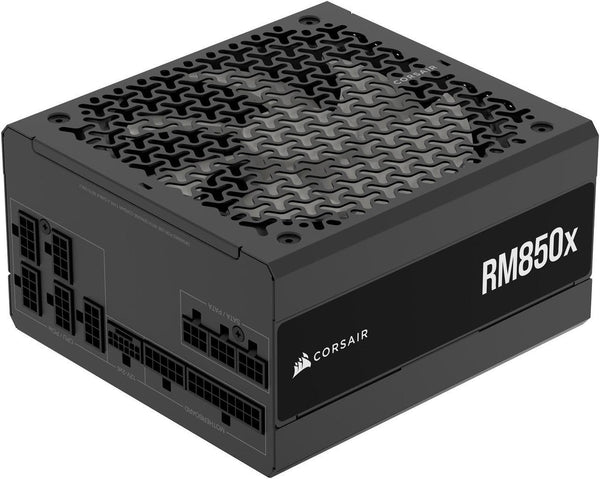

| Model | RM850x (2024) |
| Series | RMx |
| Wattage | 850W Continuous |
| Form Factor | ATX |
| Efficiency Certification | Cybenetics Gold |
| ATX Standard | ATX 3.1 |
| PCIe Standard | PCIe 5.1 |
| Modular Design | Fully Modular |
| Fan Size | 140mm Fluid Dynamic Bearing (FDB) |
| Zero RPM Mode | Yes |
| Capacitors | 100% Japanese 105°C |
| Topology | LLC Resonant + DC-DC |
| MTBF | 100,000 Hours |
| Input Voltage | 100V–240V |
| Warranty | 10 Years |
| Measurement | Size |
|---|---|
| Length | 160 mm |
| Width | 150 mm |
| Height | 86 mm |
| Rail | Output |
|---|---|
| +3.3V | 20A |
| +5V | 20A |
| +12V | 70.8A |
| +5VSB | 3A |
| Combined +12V Output | 850W |
| Cable Type | Quantity |
|---|---|
| 24-Pin ATX | 1 |
| EPS 8-Pin (4+4) | 2 |
| Native 12V-2x6 GPU Cable | 1 |
| PCIe 8-Pin (6+2) | 3 Cables |
| SATA Power | Multiple Connectors |
| Peripheral (Molex) | Included |
