📝 Product Description

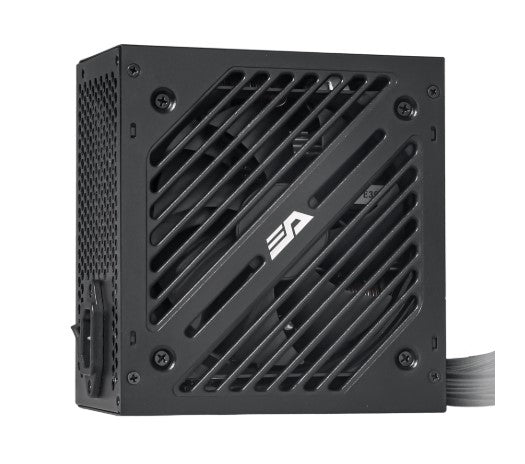

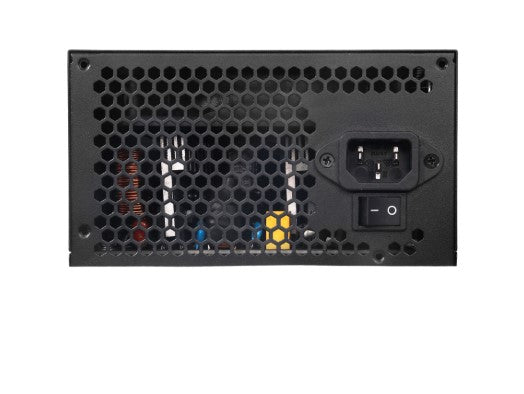

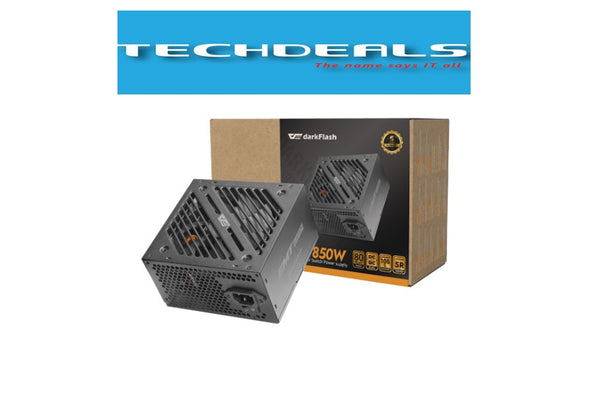

darkFlash EMT850 850W 80+ Bronze Non-Modular Power Supply
The darkFlash EMT850 is a highly efficient, ultra-reliable 850W power supply engineered to handle modern, mid-to-high-end gaming rigs and professional creator systems. Certified with an 80 PLUS Bronze rating, it achieves up to 87.03% electrical efficiency under standard loads, converting less energy into waste heat while lowering your ambient electricity bills. Built with rock-solid internal components, a high-amperage single +12V rail layout, and a standalone DC-to-DC conversion circuit, it guarantees flat line voltage delivery to protect your power-hungry CPU and GPU configurations.
-
🥉 80 PLUS Bronze Certified: Guarantees up to 87.03% performance efficiency to keep energy loss minimal and operations steady under full workloads.
-
🇯🇵 105°C Japanese Main Capacitors: Packed with industrial-grade Japanese electrolytic capacitors that heavily increase continuous heat durability and system longevity.
-
⚡ DC-to-DC Converter & Single +12V Rail: Seamlessly pushes up to 98% of its total footprint directly to the critical components via a robust 70A single rail.
-
❄️ Intelligent 120mm FDB Fan: Equipped with a quiet Fluid Dynamic Bearing cooling fan that uses smart thermal curves to adjust speeds based on power draw.
-
🖤 Stealthy Flat Black Cable Loom: The non-modular design features flexible, ultra-thin flat black cables that route easily inside tight chassis paths to maximize internal airflow.
-
🛡️ 6-Layer Multi-Protection Suite: Industrial hardware protections include Over Voltage (OVP), Over Power (OPP), Over Current (OCP), Short Circuit (SCP), Over Temperature (OTP), and Under Voltage (UVP).
⚙️ Technical Specifications
| Field Specifications | Details |
| Brand | darkFlash |
| Model Number | EMT850 |
| Total Wattage Capacity | 850 Watts |
| Efficiency Certification | 80 PLUS Bronze (Up to 87.03%) |
| Form Factor | Standard ATX ($140 \times 150 \times 86\text{ mm}$) |
| PSU Internal Topology | Active PFC ($98\%$ factor) + DC-to-DC Converter |
| Cooling Fan Layout | $120\text{ mm}$ Fluid Dynamic Bearing (FDB) Fan |
| Modular Layout | Non-Modular (With flat stealth-black cables) |
🔌 Cable Connector Configuration
-
1x 20+4 Pin Motherboard Main Connector
-
2x 4+4 Pin (8-Pin) EPS CPU Power Connectors
-
4x 6+2 Pin (8-Pin) PCI-E Graphics Card Connectors
-
6x SATA Storage Drive Power Connectors
-
3x PATA / IDE Accessory Drive Connectors
