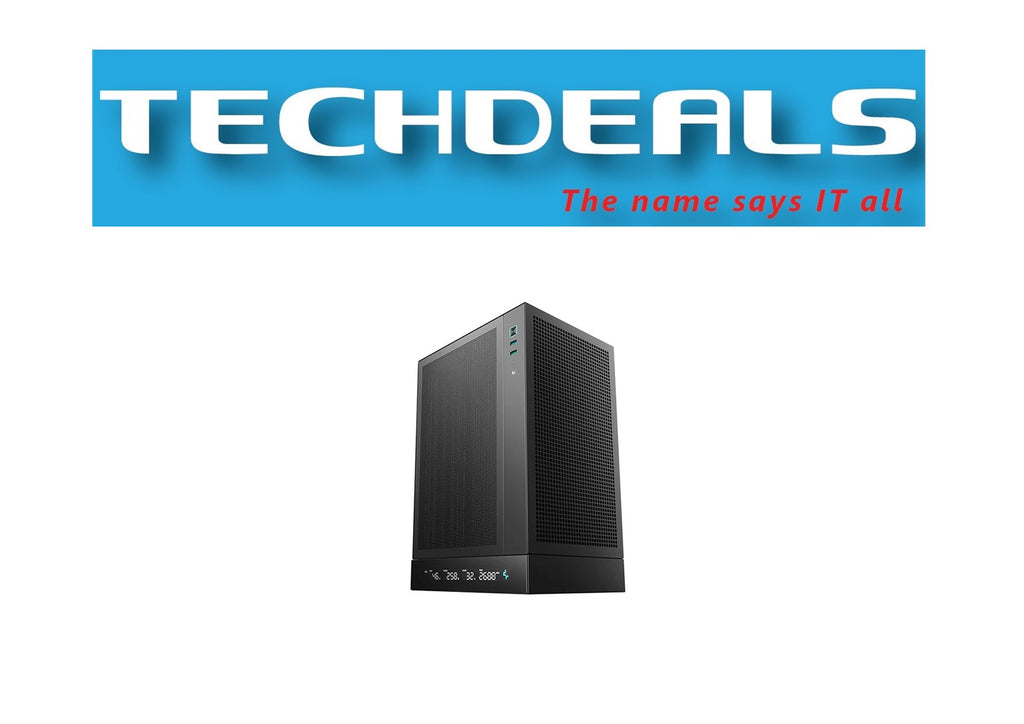

Deepcool CH170 Mesh Digital Edition Black/White

Model
Black: R-CH170-BKNPI0D-G-1

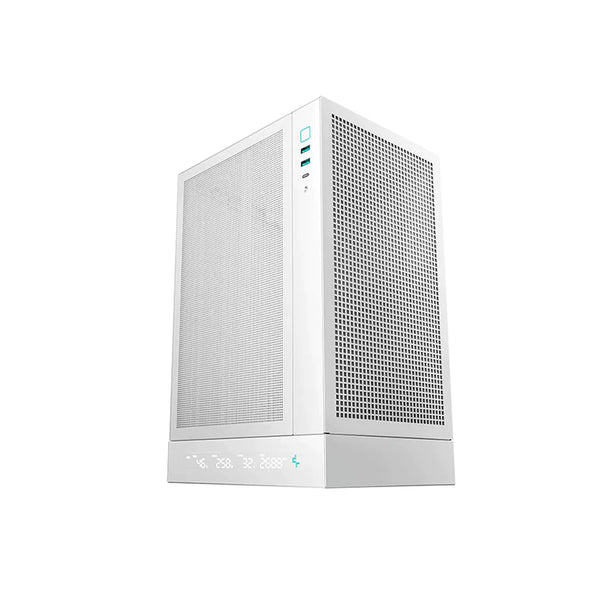

White: R-CH170-WHNPI0D-G-1

Size & Weight
• 250 × 200 × 380 mm (L × W × H)
• ~3.3–3.4 kg

Material
• Steel (SPCC), ABS

Motherboard Support
• Mini-ITX only

Front I/O
• 2 × USB 3.0
• 1 × USB Type-C (Gen2)
• 1 × Audio/Mic combo

Drive Bays
• 1 × 3.5"/2.5" shared
• 1 × 2.5"

Expansion Slots
• 3 (supports full GPU without riser)

Fan Support
• Side: 2 × 120 mm
• Rear: 2 × 120 mm
• Top: 1 × 120 mm
• Bottom: 1 × 120 mm

Radiator Support
• Side: up to 240 mm

Clearance
• CPU Cooler: up to 172 mm
• GPU: up to 305 mm (SFX PSU) or 230 mm (ATX PSU)
• GPU Thickness: up to 65 mm

PSU Support
• ATX (max 140 mm), SFX, SFX-L

Special Feature
• Built-in digital display (shows CPU/GPU/PSU temps, usage, fan speed)
