Deepcool SC790, 1 to 6 ARGB + PWM Fan Hub (Magnetic Mounting)

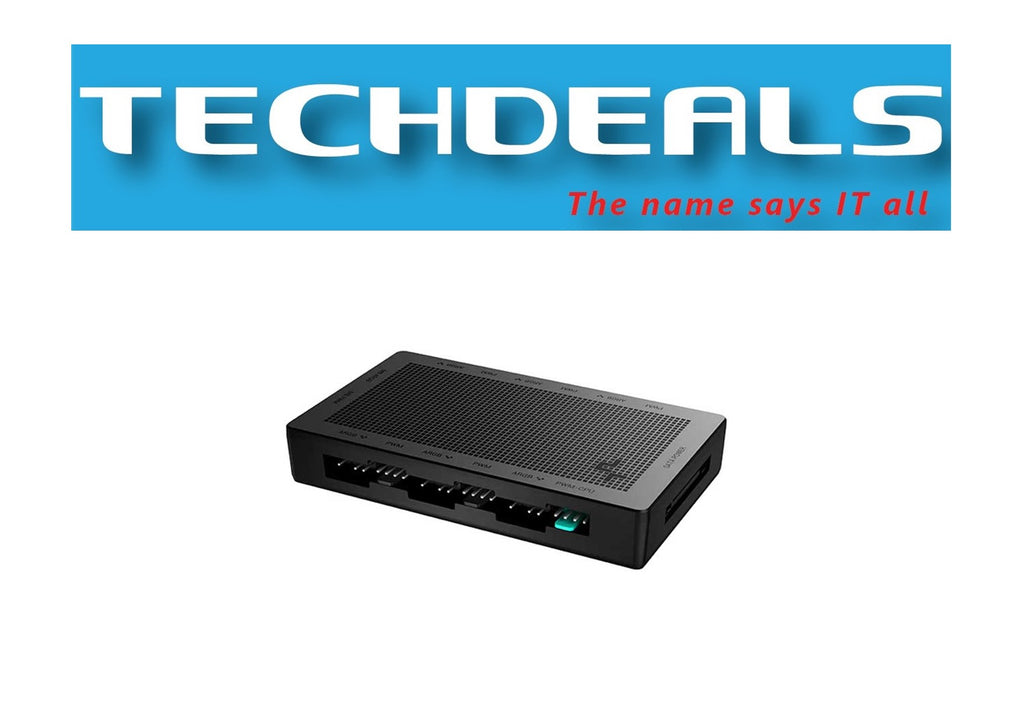

DeepCool SC790 ARGB + PWM Fan Hub (1-to-6) – Magnetic Mount

The DeepCool SC790 is a 2-in-1 hub designed to simplify cable management and extend connectivity for your cooling setup. It allows you to control up to six PWM fans and six ARGB devices through a single 4-pin PWM header and one 3-pin 5V ARGB header from your motherboard. Ideal for modern PC builds that require both clean aesthetics and functional cooling control.

Product Features

This hub provides centralized control for fan speed and lighting. It connects to your motherboard using one PWM and one ARGB cable while drawing power via a SATA connector for stable and consistent operation. The compact design with a magnetic backing allows for quick and secure mounting behind the motherboard tray or on any metal surface inside your case.

Sync Compatibility

Fully compatible with major motherboard RGB control software, including ASUS Aura Sync, MSI Mystic Light Sync, Gigabyte RGB Fusion, and ASRock Polychrome Sync. Note that this hub supports 5V 3-pin ARGB headers only and is not compatible with 12V 4-pin RGB headers.

Package Contents

1x DeepCool SC790 ARGB + PWM Fan Hub
1x SATA Power Cable
1x PWM Fan Control Cable
1x ARGB Control Cable
1x User Manual

Specifications

Dimensions: 102 × 60 × 17 mm
Weight: 69 g
Fan Ports: 6 (PWM, 4-pin)
ARGB Ports: 6 (3-pin, 5V)
Max Fan Output: 2.0A per port, 4.5A total
Max ARGB Output: 2.0A per port, 4.5A total
Power Input: SATA
Mounting: Magnetic

Important Notes

Do not connect 12V RGB devices to the ARGB ports.
Do not connect your CPU fan to the hub. The CPU cooler should always be connected directly to the motherboard's CPU_FAN header.

Warranty

Brand new, official product with local warranty. Fast local shipping available.
