| Model / SKU |
CS-10MAB9901 / 10MAB9901 |
| Product Name |

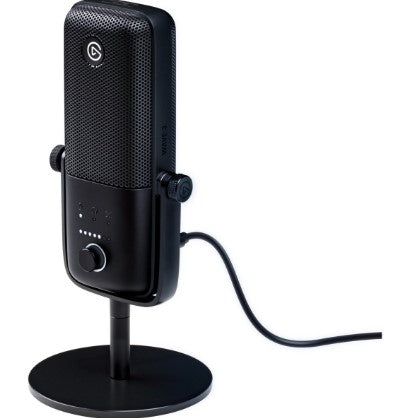

Wave:3 |
| Color |
Black |
| Product Type |
USB Condenser Microphone & Digital Mixing Solution |
| Capsule |
17mm Electret |
| Polar Pattern |
Cardioid |
| Resolution |
24-bit |
| Sample Rate |
48 / 96 kHz |
| Frequency Response |
70–20,000 Hz |
| Sensitivity |
-25 dBFS (min gain) / 15 dBFS (max gain) |
| Max SPL |
120 dB / 140 dB with Clipguard |
| Dynamic Range |
95 dB / 115 dB with Clipguard |
| Connection |
USB-C |
| Headphone Output |
Yes |
| Real-Time Monitoring |
Yes |
| Mute |
Capacitive touch mute |
| Control Dial |
Input Gain / Headphone Volume / Mic-PC Mix |
| Software |
Elgato Wave Link |
| Dimensions |
153 × 66 × 40 mm |
| Mic + U-Mount Weight |
280 g |
| Base Weight |
305 g |
| Cable |
2.5m USB-A to USB-C |
| Desk Stand |
Included |
| Boom Arm Adapter |
Included |
| Warranty |
— |
