| Model / SKU |
CS-10MAI9901 / 10MAI9901 |
| Product Name |

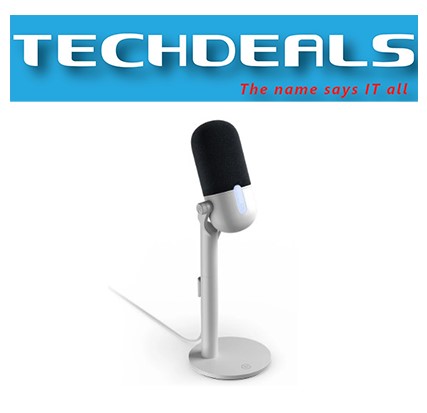

Wave Neo |
| Product Type |
USB Condenser Microphone |
| Capsule Type |
Condenser |
| Polar Pattern |
Cardioid |
| Bit Depth |
24-bit |
| Sample Rate |
48 / 96 kHz |
| Frequency Response |
20 Hz – 20 kHz |
| Max SPL |
120 dB |
| Sensitivity |
-23 dBFS (min gain) / 7 dBFS (max gain) |
| Dynamic Range |
94 dB |
| Digital Interface |
USB-C |
| Headphone Output |
3.5mm Stereo |
| Supported Mounting Threads |
1/4", 3/8", 5/8" |
| Dimensions with Riser |
92 × 92 × 282 mm |
| Dimensions without Riser |
92 × 92 × 182 mm |
| Weight with Riser |
520 g |
| Weight without Riser |
450 g |
| Riser Extension |
100 mm |
| Power Consumption |
5V, 200mA max |
| Software |
Elgato Wave Link |
| Connectivity |
USB 2.0 |
| Compatible Platforms |
PC, Mac, PS4, PS5, iPad, iPhone, Android |
| Included Pop Filter |
Yes |
| Included Desktop Stand |
Yes |
| Included USB Cable |
USB-C to USB-A, 150 cm, Nylon Braided |
| Warranty |
— |
