| Model / SKU |
CS-10MAG9901 / 10MAG9901 |
| Product Name |

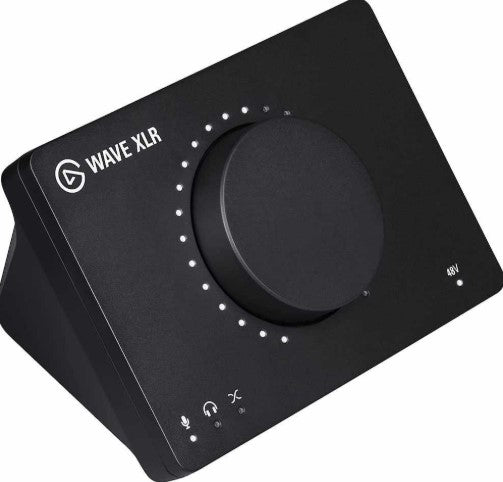

Wave XLR |
| Color |
Black |
| Product Type |
USB Microphone Interface & Digital Mixing Solution |
| Microphone Input |
1 × XLR |
| Frequency Response |
20 Hz – 20 kHz |
| Dynamic Range |
100 dB / 120 dB with Clipguard |
| Equivalent Input Noise (EIN) |
-130 dBV @ 60 dB gain |
| Gain Range |
0–75 dB |
| Phantom Power |
48V DC, 7mA |
| Maximum Input Level |
10V @ 0 dB gain with Clipguard |
| Resolution |
24-bit |
| Sample Rate |
48 / 96 kHz |
| Headphone Output |
High-power headphone output |
| Headphone DAC |
16/24-bit, 48/96 kHz |
| Maximum Headphone Output |
77 mW @ 16Ω |
| Clipguard |
Yes |
| Low-Cut Filter |
Off / 80 Hz / 120 Hz |
| Mute |
Capacitive touch mute |
| Control Dial |
Input Gain / Headphone Volume / Mic-PC Mix |
| Interface |
USB-C |
| Software |
Elgato Wave Link |
| Dimensions |
118 × 88 × 84 mm |
| Weight |
300 g |
| Cable |
USB-A to USB-C, 250 cm |
| Compatibility |
Windows 11 64-bit+, macOS Sonoma 14.2+ |
| Warranty |
2 Years |
