| Model |

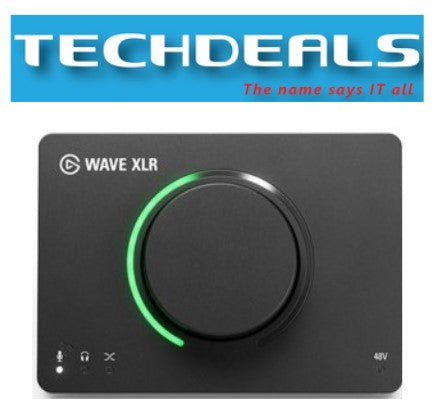

Wave XLR MK.2 |
| SKU |
CS-10MAN9901 / 10MAN9901 |
| Product Type |
USB XLR Microphone Interface |
| XLR Input |
1 × XLR |
| Phantom Power |
+48V |
| Audio Resolution |
24-bit |
| Sample Rate |
48 kHz |
| XLR Frequency Response |
20Hz – 20kHz |
| Headphone Frequency Response |
20Hz – 20kHz (32Ω) |
| XLR Dynamic Range |
135 dB |
| Equivalent Input Noise (EIN) |
-130 dB, A-weighted |
| Maximum Input Level |
6 dBV |
| Gain |
Up to 80 dB |
| Headphone Output |
1 × 3.5mm Stereo |
| Host Connection |
USB-C |
| Wave FX Processor |
Built-in |
| DSP Effects |
Supported |
| Clipguard |
Clipguard 2.0 |
| VST Effects |
Supported |
| Voice Focus |
Supported through Wave Link |
| Capacitive Mute |
Yes |
| Control Dial |
Gain / Voice Tune / Headphone Volume / Mic-PC Mix |
| LED Ring |
Yes |
| Software |
Elgato Wave Link |
| Stream Deck Integration |
Supported |
| Power Consumption |
Up to 900 mA |
| Cable |
USB-C to USB-C, 150 cm |
| Dimensions |
93 × 118 × 73 mm |
| Weight |
320 g |
| Colour |
Black |
| Windows |
Windows 11 64-bit or newer |
| macOS |
macOS Sonoma 14.2 or newer |
| In the Box |
Wave XLR MK.2, USB-C to USB-C Cable, Quick Start Guide |
