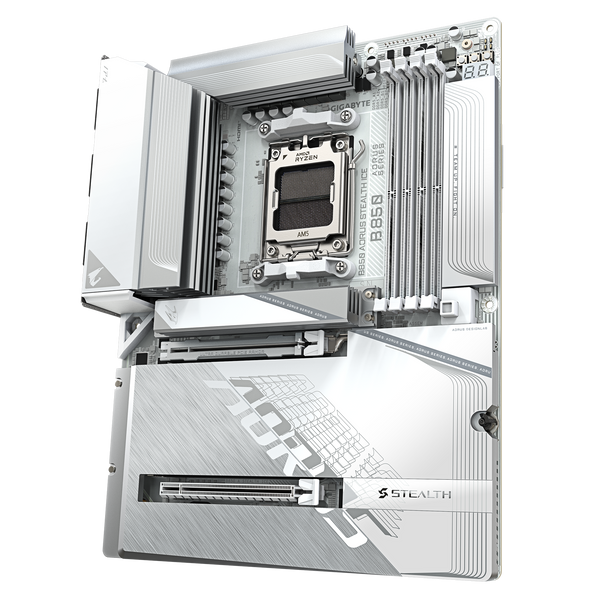

Core Specifications
-
Socket: AMD Socket AM5 (Supports Ryzen 9000, 8000, and 7000 Series Processors)
-
Chipset: AMD B850
-

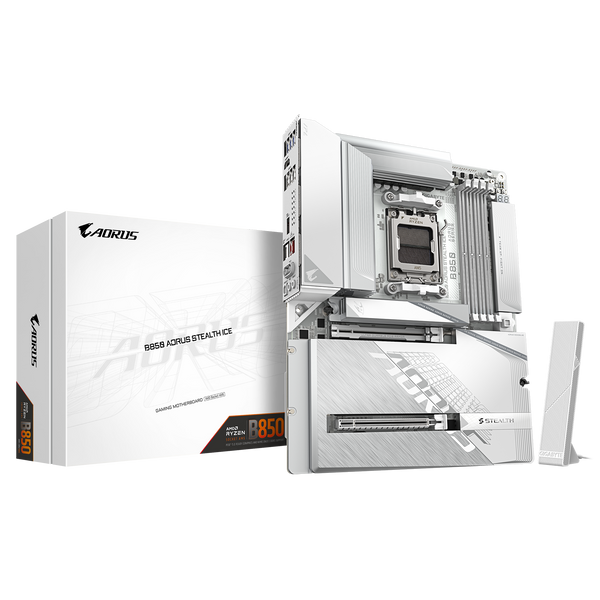

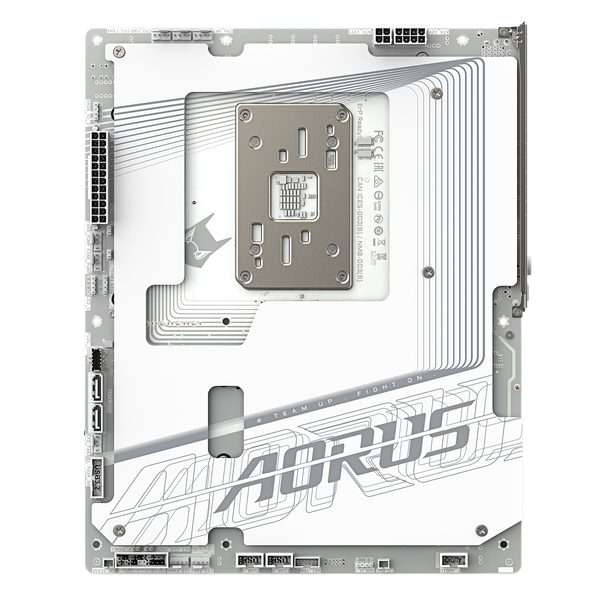

Design Feature: Back-connect design (Stealth Series) with white PCB/heatsinks and pure white UD base plate
-
Memory Support: 4x DDR5 DIMM slots (Up to 256 GB, Dual Channel, up to 8200+ MT/s OC)
-
Expansion Slots:
-
1x PCIe 5.0 x16 (integrated in CPU)
-
1x PCIe 4.0 x4 (integrated in Chipset)
-
-
Storage Options:
-
4x M.2 Slots (2x PCIe 5.0 x4 + 2x PCIe 4.0 x4)
-
2x SATA 6Gb/s ports
-
-

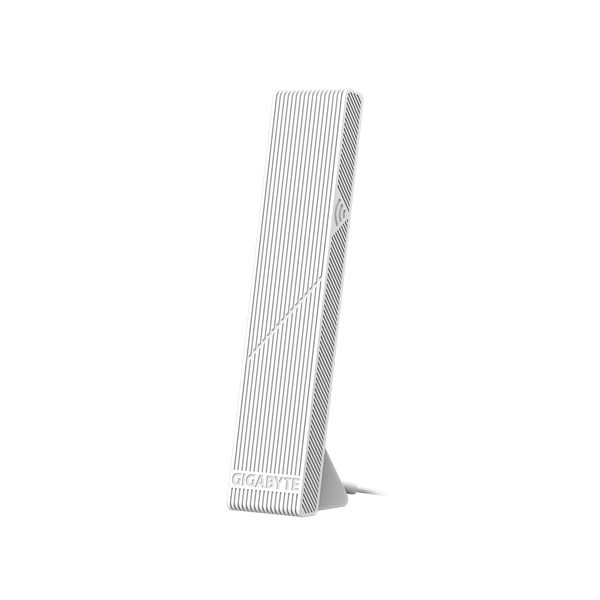

Networking & Wireless: Realtek 5GbE LAN + Wi-Fi 7 & Bluetooth 5.4
-
Audio: Realtek ALC1220 7.1-Channel High Definition Audio with S/PDIF Out
-

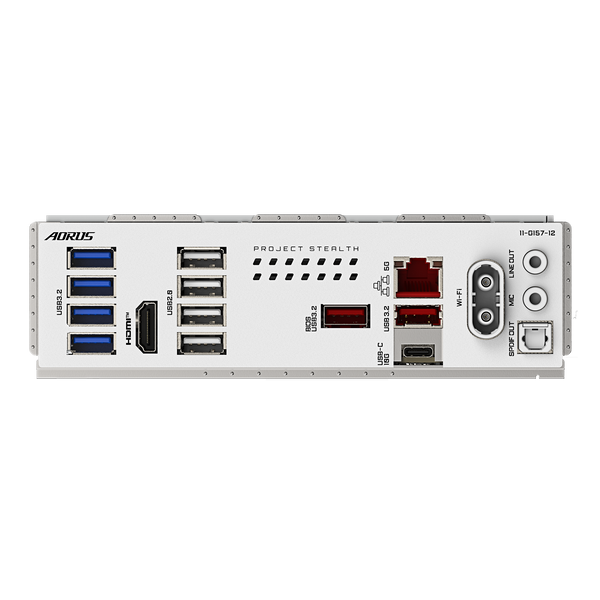

Rear USB Ports: 1x USB 3.2 Gen 2 Type-C, 2x USB 3.2 Gen 2 Type-A, 4x USB 3.2 Gen 1, 4x USB 2.0
-
Video Output: 1x HDMI 2.1
