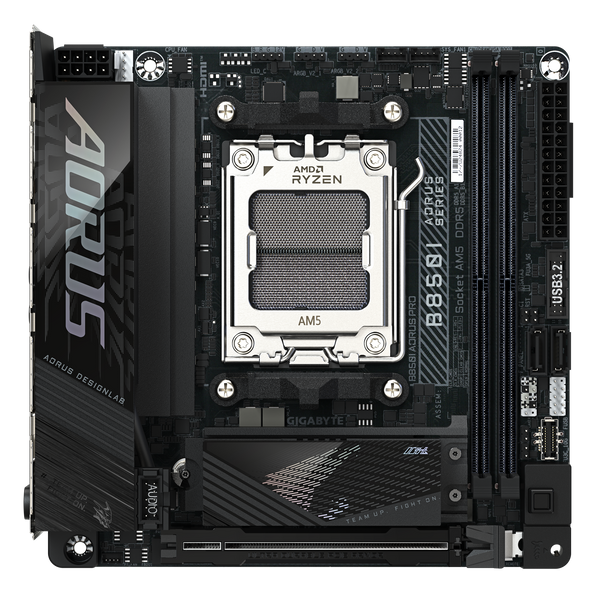

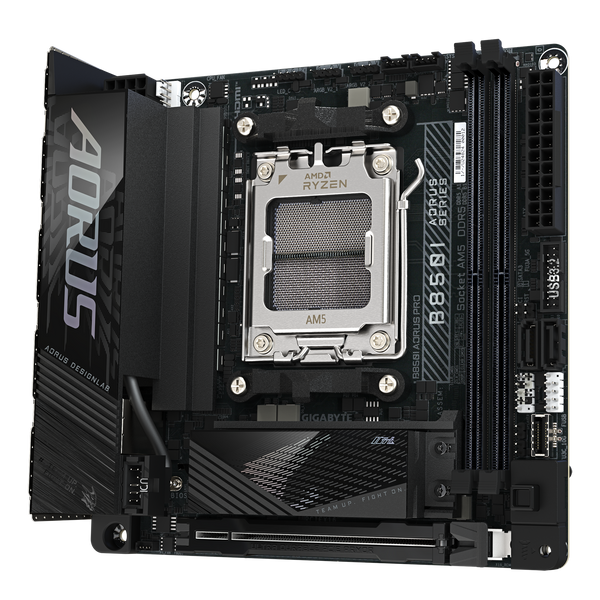

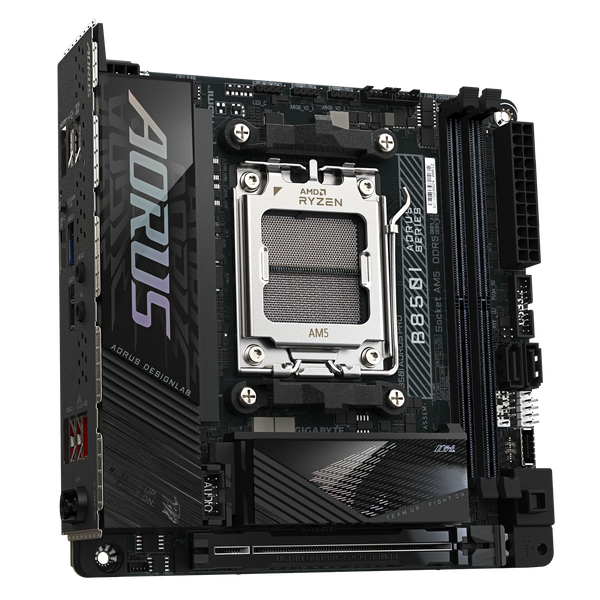

Key Features
- AMD AM5 socket — Supports AMD Ryzen 7000, 8000, and 9000 series processors.
- Mini-ITX form factor — Ideal for compact SFF (Small Form Factor) builds.
- 8+2+1 Digital VRM design with 10-layer PCB and premium power components for stable CPU power delivery.
- DDR5 support up to 128GB (2 DIMM slots) with EXPO/XMP support and speeds up to DDR5-8400+ OC (8800+ on Rev. 1.1).
- PCIe 5.0 x16 slot for next-generation GPUs.
-
Dual M.2 storage
- 1 × PCIe 5.0 x4 M.2
- 1 × PCIe 4.0 x4 M.2
- Plus 2 × SATA 6Gb/s ports.
Networking

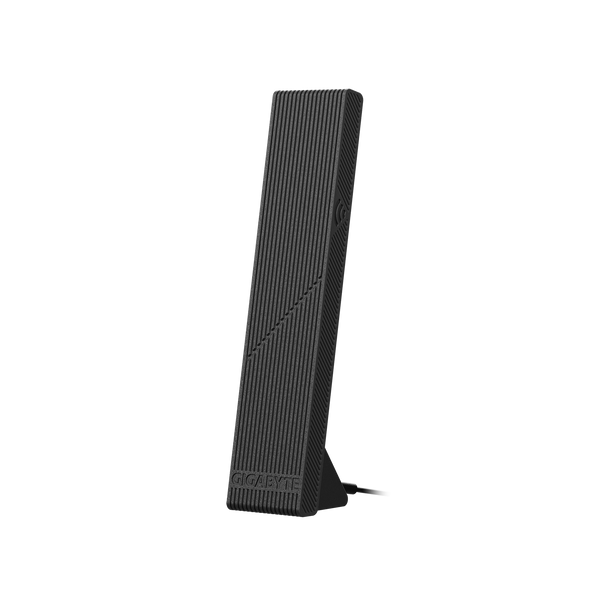

- Wi-Fi 7 (802.11be) with high-gain directional antenna.
- Bluetooth 5.4.
- 2.5GbE LAN (Realtek).
Cooling & Build Features
- Large VRM Thermal Armor heatsink design.
- M.2 Thermal Guard for SSD cooling.
- Smart Fan 6 fan control system.
- Integrated rear I/O shield.
DIY-Friendly Features
- Q-Flash Plus (BIOS update without CPU/RAM installed).
- PCIe EZ-Latch Plus for easier GPU installation/removal.
- M.2 EZ-Latch Plus / EZ-Latch Click tool-free SSD installation.
- Debug LEDs for troubleshooting.

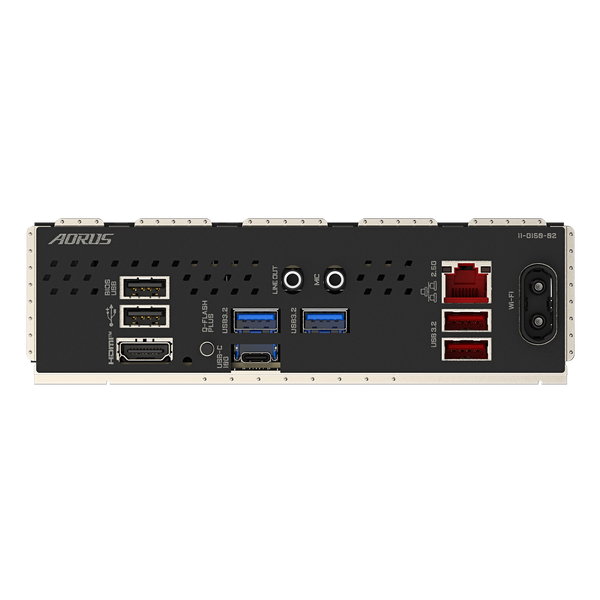

Rear I/O Highlights
- 1 × HDMI 2.1 output.
- USB-C 10Gbps rear port.
- Front USB-C 20Gbps header.
- Multiple USB 3.2 Gen1/Gen2 ports.
- 2.5GbE LAN and Wi-Fi antenna connectors.
Suitable Pairings
For a Sim Lim ITX build, this board pairs especially well with:
- AMD Ryzen 7 7800X3D
- AMD Ryzen 7 9800X3D
- Ryzen 9 9900X / 9950X (with adequate cooling)
Its biggest strengths are PCIe 5.0 GPU support, PCIe 5.0 SSD support, Wi-Fi 7, strong VRM, and easy-to-build ITX features, making it one of the better-value AM5 Mini-ITX boards currently available.
