Core Engine & Architecture
-

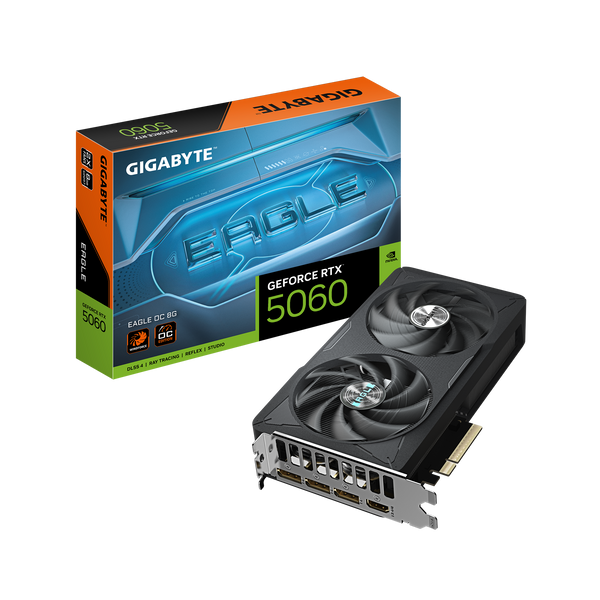

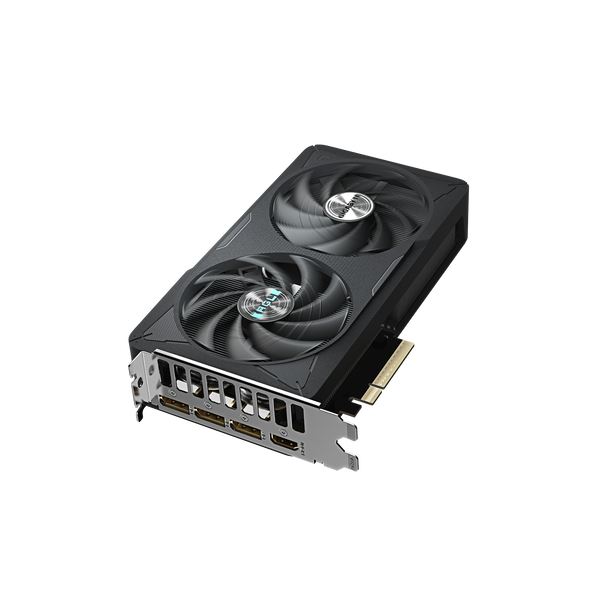

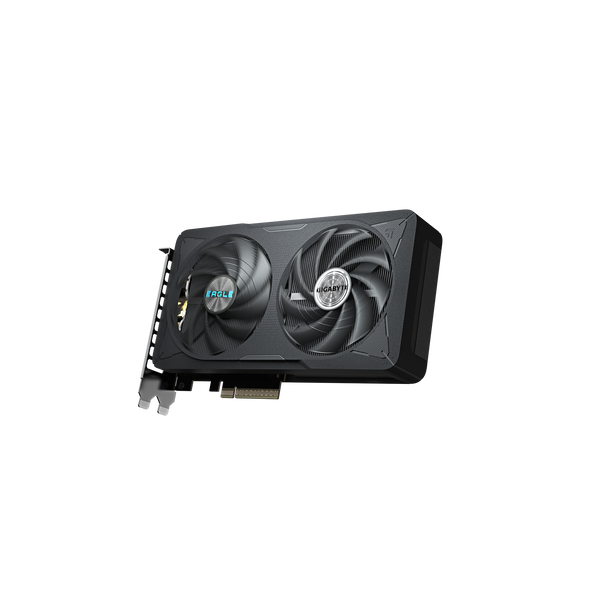

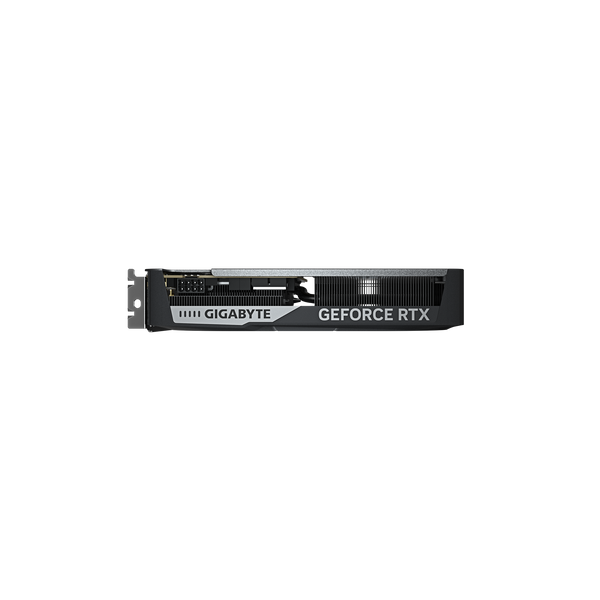

Graphics Processor: NVIDIA GeForce RTX 5060
-
GPU Architecture: NVIDIA Blackwell Architecture (DLSS 4 with Multi Frame Generation ready)
-
CUDA Cores: 3,840
-
Core Clock Speed: 2550 MHz (Factory Overclocked vs. 2497 MHz Reference Layout)
-
Tensor Cores: 5th Generation
-
Ray Tracing Cores: 4th Generation
Memory Profile
-
Memory Size: 8 GB
-
Memory Type: Next-Gen GDDR7
-
Memory Bus Interface: 128-bit
-
Effective Memory Clock: 28 Gbps
-
Total Memory Bandwidth: 448 GB/s
System Interface & Connectivity
-
Bus Type: PCI Express 5.0
-
Video Outputs:
-
3x DisplayPort 2.1b
-
1x HDMI 2.1b
-
-
Maximum Digital Resolution: 7680 x 4320 (8K Ultra HD)
-
Multi-View Capability: Up to 4 displays concurrently
Thermal & Power Requirements
-
Cooling System: WINDFORCE dual-fan design (2x alternate-spinning unique Hawk blade fans, server-grade thermal conductive gel, direct-contact copper plate with composite heat pipes, and open screen cooling layout)
-
Power Connectors: 1x standard 8-pin PCIe power connector
-
Total Graphics Power (TDP): 145W maximum peak
-
Recommended System PSU: 450W minimum
