Core Engine & Architecture
-
Graphics Processor: NVIDIA GeForce RTX 5070
-
GPU Architecture: NVIDIA Blackwell Architecture
-
CUDA Cores: 6,144
-
Core Clock Speed: 2587 MHz (Factory Overclocked Mode vs. 2512 MHz Reference)
-
Tensor Cores: 5th Generation
-
Ray Tracing Cores: 4th Generation
Memory Profile
-
Memory Size: 12 GB
-
Memory Type: Next-Gen GDDR7
-
Memory Bus Interface: 192-bit
-
Effective Memory Clock: 28 Gbps
-
Total Memory Bandwidth: 672.0 GB/s
Board & System Interface
-
Bus Type: PCI Express 5.0 x16
-
Form Factor / PCB: ATX Layout
-
Slot Width: Dual-slot profile
-
Form Factor Compliance: NVIDIA SFF-Ready (Small Form Factor compliant)
Display Support & Connectivity
-

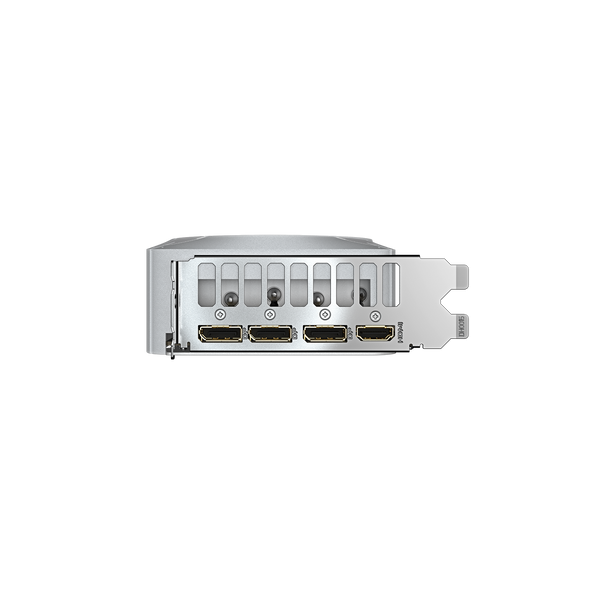

Video Outputs:
-
3x DisplayPort 2.1b
-
1x HDMI 2.1b
-
-
Maximum Digital Resolution: 7680 x 4320 (8K Ultra HD)
-
Multi-View Capability: Supports up to 4 concurrent displays
Thermal & Power Requirements
-

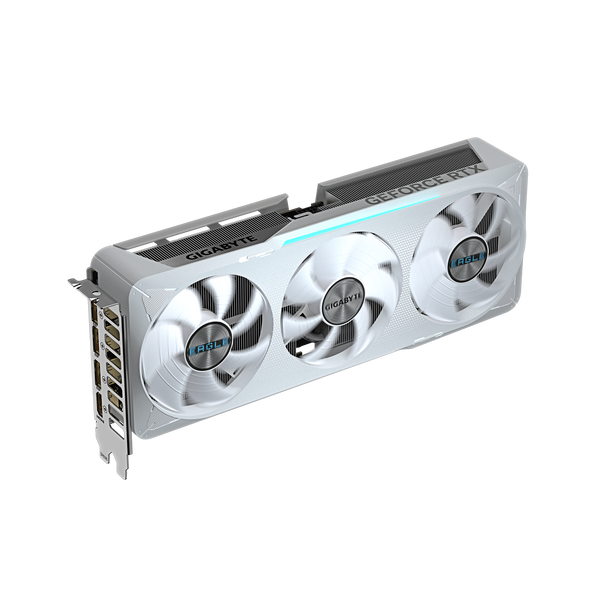

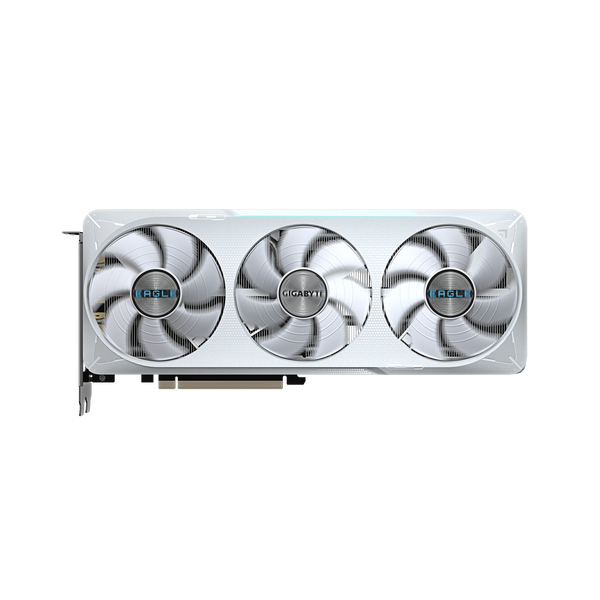

Cooling System: WINDFORCE cooling module (Triple alternate-spinning Hawk fans, high-conductivity server-grade thermal gel, and extended screen cooling)
-
Power Connectors: 1x 16-pin (12VHPWR / 12V-2x6)
-
Estimated Board Power Draw: ~235W–250W typical peak
-
Recommended System PSU: 750W minimum
