Core Engine & Architecture
-
Graphics Processor: NVIDIA GeForce RTX 5070
-
GPU Architecture: NVIDIA Blackwell Architecture
-
CUDA Cores: 6,144
-
Core Clock Speed: 2542 MHz (Factory Overclock vs. 2512 MHz Reference)
-
Tensor Cores: 5th Generation
-
Ray Tracing Cores: 4th Generation
Memory Profile
-
Memory Size: 12 GB
-
Memory Type: Next-Gen GDDR7
-
Memory Bus Interface: 192-bit
-
Effective Memory Clock: 28 Gbps
System Interface & Connectivity
-
Bus Type: PCI Express 5.0 x16
-
Form Factor Compliance: NVIDIA SFF-Ready (Small Form Factor compliant)
-

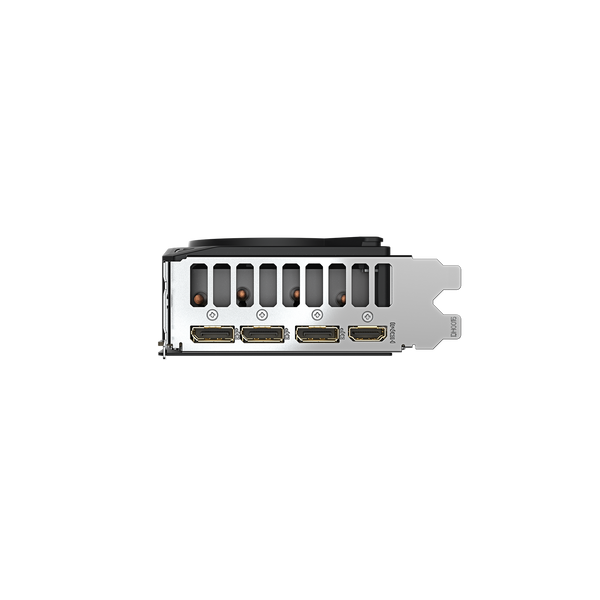

Video Outputs:
-
3x DisplayPort 2.1b
-
1x HDMI 2.1b
-
-
Maximum Digital Resolution: 7680 x 4320 (8K Ultra HD)
