Gigabyte X870 Aorus Elite ICE WiFi 7 AM5

CPU & Chipset

• AMD X870 chipset
• AM5 socket
• Supports AMD Ryzen 9000, 8000, and 7000 Series processors.

Memory

• 4× DDR5 DIMM slots
• Up to 256GB DDR5
• DDR5 speeds up to 8200 MT/s (OC)
• Supports AMD EXPO and Intel XMP memory profiles.

Expansion Slots

• 1× PCIe 5.0 x16 slot
• 1× PCIe 4.0 x16 slot (x4 mode)
• 1× PCIe 3.0 x16 slot
• Reinforced PCIe slot design for high-end GPUs.

Storage

• 4× M.2 NVMe slots
  • Up to 3× PCIe 5.0 x4
  • 1× PCIe 4.0 x4
• 4× SATA 6Gb/s ports
• RAID 0/1/10 support.

Networking

• Wi-Fi 7
• Bluetooth 5.4
• 2.5GbE LAN
• WiFi EZ-Plug antenna design.

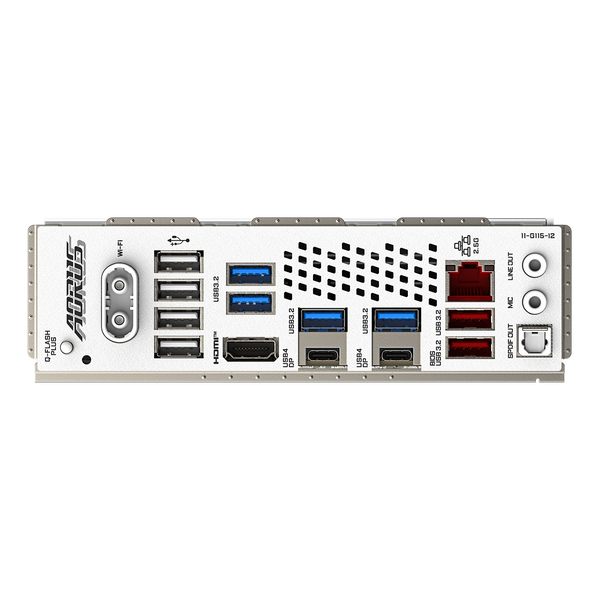

USB & Connectivity

• 2× USB4 Type-C (40Gbps)
• DisplayPort output through USB4
• Front USB-C 20Gbps (USB 3.2 Gen2x2) header
• HDMI 2.1 output
• Up to 10 rear USB ports.

Power Design

• 16+2+2 Digital VRM
• Designed for Ryzen 7, Ryzen 9 and X3D processors
• Dual 8-pin CPU power connectors.

Cooling Features

• VRM Thermal Armor
• M.2 Thermal Guard
• Smart Fan 6
• Multiple fan and pump headers.

DIY-Friendly Features

• PCIe EZ-Latch Plus
• M.2 EZ-Latch Plus
• Q-Flash Plus
• WiFi EZ-Plug
• DriverBIOS Wi-Fi driver integration for easier Windows setup.

Audio

• Realtek ALC1220
• 7.1-channel HD Audio
• Optical S/PDIF Out
• Audio-grade capacitors.

Physical Specifications

• Form Factor: ATX
• Dimensions: 30.5 × 24.4 cm (W × L)

Quick Selling Points

• White ICE premium design
• AMD X870 + AM5 platform
• 16+2+2 VRM
• Wi-Fi 7 + Bluetooth 5.4
• 2.5GbE LAN
• Dual USB4 40Gbps
• 4× M.2 SSD slots
• PCIe 5.0 GPU + Gen5 SSD support
• 256GB DDR5 support
• EZ-Latch tool-free installation features
