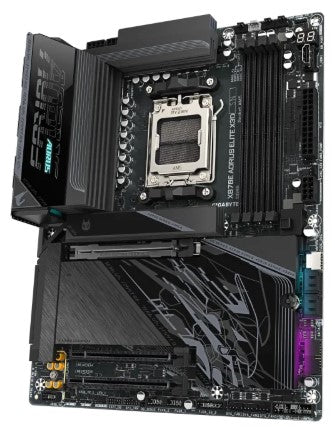

Processor & Chipset
-
CPU Socket: AMD Socket AM5
-
Supported Processors: AMD Ryzen 9000, 8000, and 7000 Series Processors
-
Chipset: AMD X870E
Power Delivery & Structural Design
-
VRM Configuration: 16+2+2 Twin Digital VRM Phases
-
Smart Power Stages: 80A Smart Power Stages (SPS) across VCore and SoC
-
PCB Layers: 8-Layer Server-grade PCB with 2X Copper enhancement
-
AI Tooling: AI-Trace Technology (optimizes trace routing for peak memory and signal fidelity)
Memory Profile
-
Memory Support: Dual Channel DDR5
-
DIMM Slots: 4x DIMM slots
-
Maximum Capacity: Up to 256 GB (supports up to 64GB single modules)
-
Speed/Overclocking: EXPO certified up to 9,000+ MT/s
Expansion & Storage Interfaces
-
PCIe Slots:
-
1x PCIe 5.0 x16 slot (featuring reinforced PCIe UD Slot X with 10x structural strength)
-
1x PCIe 4.0 x4 slot
-
1x PCIe 3.0 x2 slot
-
-
M.2 Storage Slots:
-
2x PCIe 5.0 x4 M.2 slots
-
2x PCIe 4.0 x4 M.2 slots
-
-
SATA Storage: 4x SATA 6Gb/s ports

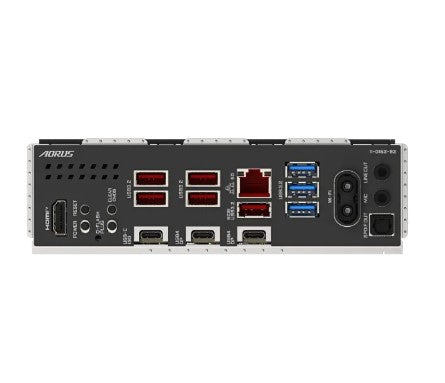

Rear Panel I/O & Networking
-
USB4 Ports: 2x USB4 Type-C ports (Up to 40Gb/s data transfer and DisplayPort Alt Mode support)
-
Standard USB: 1x USB 3.2 Gen 2 Type-C, 5x USB 3.2 Gen 2 Type-A, 3x USB 3.2 Gen 1
-
Wired LAN: 5GbE Realtek RJ45 LAN port
-
Wireless Networking: Built-in Wi-Fi 7 with ultra-high-gain directional antenna array and Bluetooth 5.4
-
Video Output: 1x HDMI port
Specialized Thermal & DIY Features
-
Cooling Armor: VRM Thermal Armor Advanced with direct-touch heatpipes and full-coverage M.2 Thermal Guards
-
Hardware EZ-Latches: PCIe EZ-Latch Plus, M.2 EZ-Latch Click, and Wi-Fi EZ-Plug for quick toolless assembly
-
Physical On-Board Buttons: Q-Flash Plus button, Clear CMOS button, and a customizable Rear EZ-Multi-key reset button
