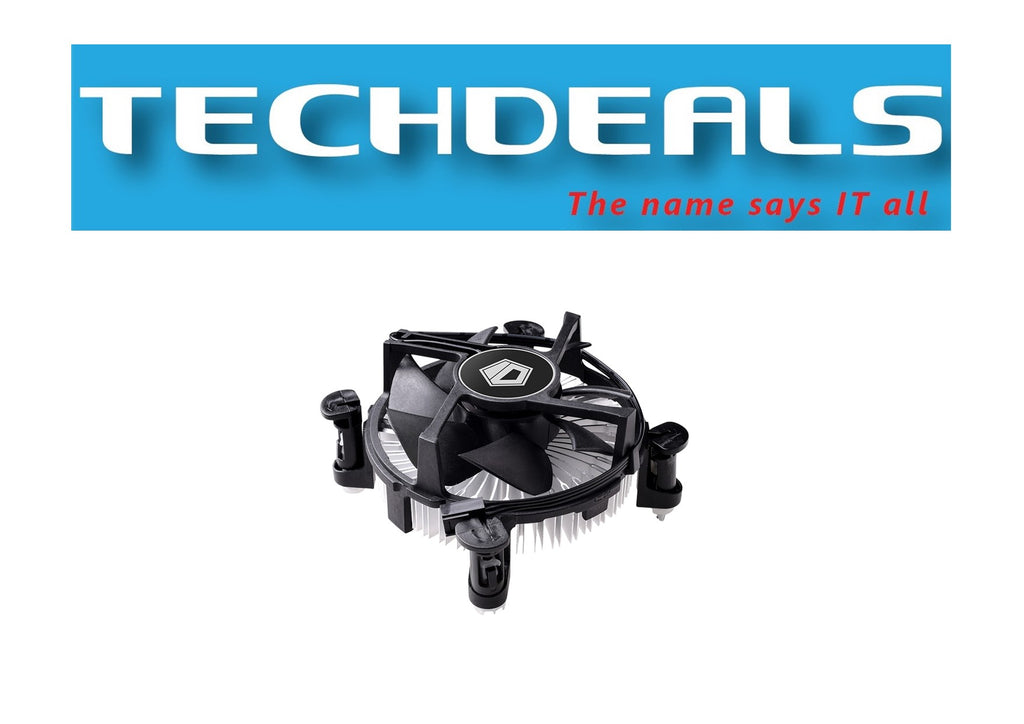

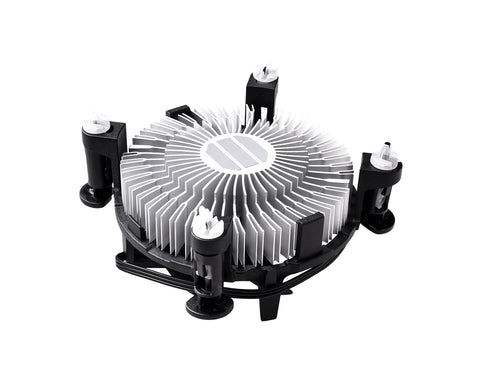

ID-Cooling DK 09i - LGA115x/LGA1200
Compatibility: Intel LGA1200 / 1150 / 1151 / 1155 / 1156
TDP Support: 65W
Overall Dimensions: 95 × 95 × 56 mm (L × W × H)
Heatsink Material: Aluminum Fin
Weight: 150 g
Fan Specifications
Fan Dimensions: Ø92 × 25 mm
Fan Speed: 2200 ± 10% RPM
Maximum Airflow: 38.62 CFM
Maximum Static Pressure: 1.8 mmH₂O
Noise Level: 26.8 dB(A)
Rated Voltage: 12V DC
Operating Voltage: 10.8 – 13.2V DC
Starting Voltage: 7V DC
Rated Current: 0.18A
Power Input: 2.16W
Connector: 3-Pin PWM
