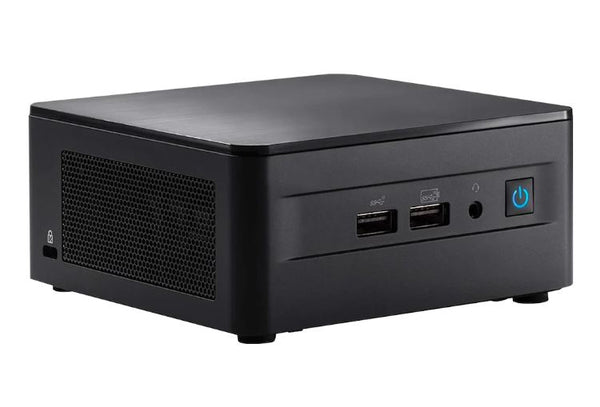

Intel WallStreet Canyon NUC 12 Pro NUC12WSHi5 Core i5-1240P Barebone PC

Intel WallStreet Canyon NUC 12 Pro NUC12WSHi5 Core i5-1240P Barebone PC

$615.00 $686.50

Product Collection : Intel® NUC Kit with 12th Generation Intel® Core™ Processors
Supported Operating : SystemsWindows 11 Home*, Windows 11 Pro*, Windows 10 Home*, Windows 10 IoT Enterprise*, Windows 10 Pro*, Red Hat Linux*, Ubuntu 20.04 LTS*
Socket :Soldered-down BGA
Internal Drive Form Factor : M.2 and 2.5" Drive
DC Input Voltage Supported : 12-20 VDC
Processor Included : Intel® Core™ i5-1240P Processor (12M Cache, up to 4.40 GHz)
Total Cores : 12
Total Threads : 16
Total Cores : 12
Total Threads : 16
Lithography Intel 7
Max Turbo Frequency : 4.40 GHz
Max Memory Size (dependent on memory type) : 64 GB
Memory Types : DDR4-3200 1.2V SODIMMs
Max # of Memory Channels : 2
Max # of DIMMs : 2
ECC Memory Supported: No
Integrated Graphics : Yes

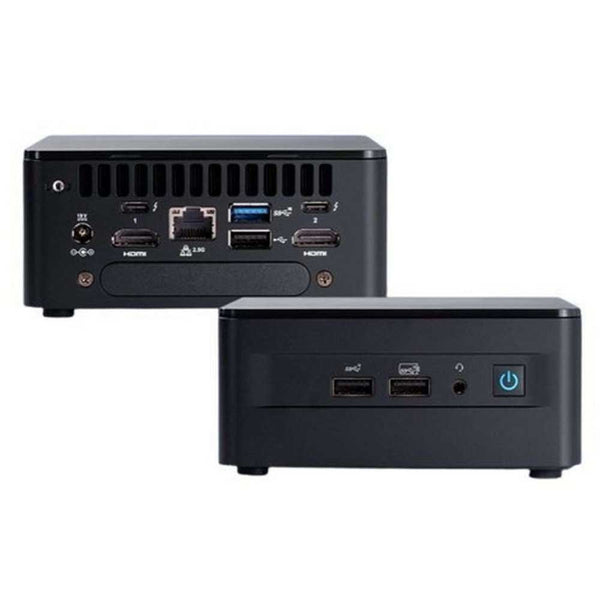

Graphics Output : 2x HDMI 2.1 TMDS Compatible, 2x DP 1.4a via Type C
USB Configuration :Front: 2x USB 3.2
Rear: 2x USB 4 (type C), 1x USB 3.2, 1x USB 2.0
Internal: 1x USB 3.2 on m.2 22x42 (pins), 2x USB 2.0 (headers)
Audio (back channel + front channel) : Front panel: 3.5mm headphone/mic jack
Integrated LAN : Intel® Ethernet Controller i225-V
Integrated Wireless :Intel® Wi-Fi 6E AX211(Gig+)
Integrated Bluetooth : Yes
Additional Headers : Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector
of Thunderbolt™ Ports : 2x Thunderbolt™ 4
Please chat with us first to confirm availability of stock before placing the order.
Please check your delivery address and phone number are correct.
Thank you.
