| Model / SKU |
LL 6021 |
| Official Model |
SX1200P |
| Product Type |

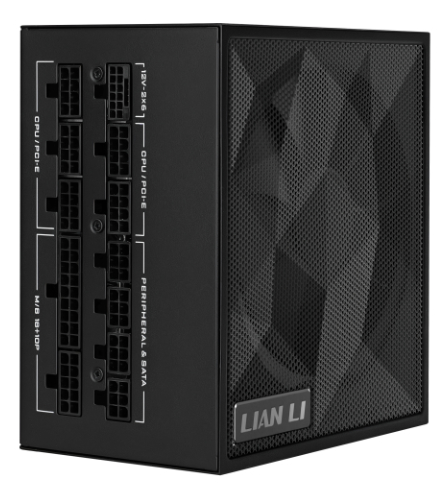

ATX Power Supply |
| Power Output |
1200W | 1000W | 850W |
| Efficiency Certification |
80 PLUS Platinum |
| Form Factor |
ATX |
| ATX Version |
ATX 3.1 |
| PCIe Standard |
PCIe 5.1 |
| Modular |
Fully Modular |
| 12V Connector |
12V-2×6 |
| +12V Output |
1200W |
| +3.3V + +5V Output |
100W |
| Input Voltage |
100–240V AC |
| Input Current |
7.5–14.8A |
| Input Frequency |
50–60Hz |
| PFC |
Active PFC |
| Fan |
120mm FDB |
| Max Fan Speed |
2000 RPM |
| Fanless Mode |
Up to 40% load |
| Dimensions |
150 × 86 × 140 mm |
| Capacitors |
100% Japanese 105°C capacitors |
| Power Excursion |
Up to 200% of rated output |
| Protection |
OPP / NLP / OVP / SCP / OCP / OTP / SIP / UVP |
| Cable Type |
Braided cables with cable combs |
| Color |
Black / White |
| Warranty |
10 Years |
