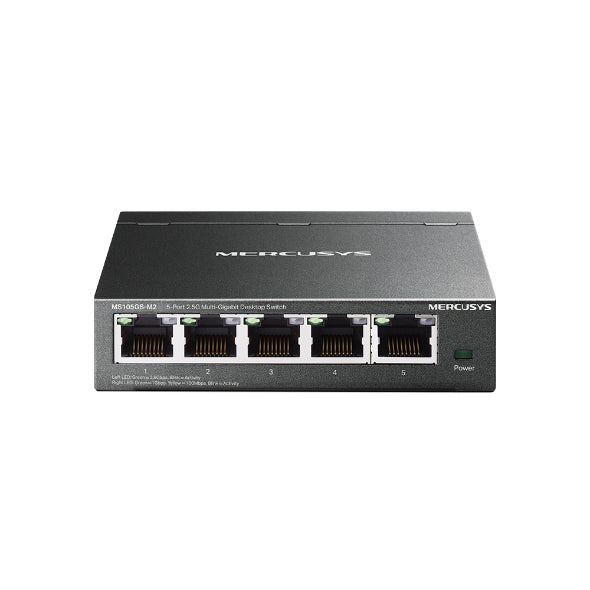

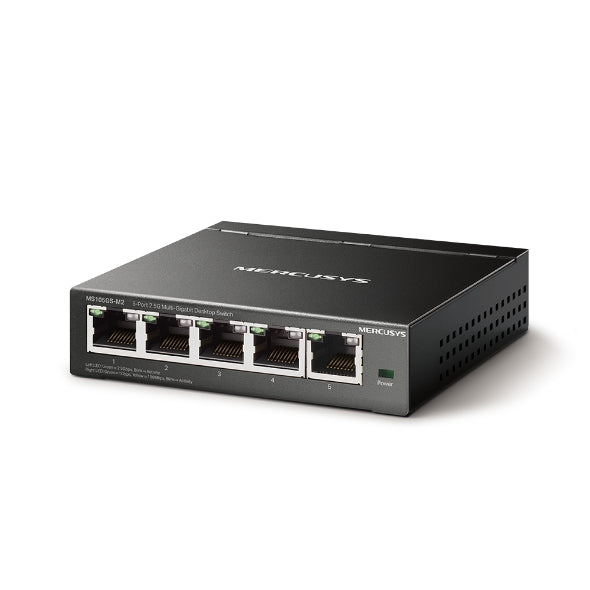

⚙️ Technical Specifications (for 5 ports)
|
Feature |
Specification |
|
Interfaces |
5× 100 Mbps / 1 Gbps / 2.5 Gbps RJ45 Ports (Auto-Negotiation, Auto-MDI/MDIX) |
|
Switching Capacity |
25 Gbps |
|
Packet Forwarding Rate |
18.6 Mpps |
|
MAC Address Table |
4K |
|
Jumbo Frame |
12 KB |
|
Standards & Protocols |
IEEE 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz |
|
Power Supply |
External Power Adapter (Output: 9 VDC / 0.6 A) |
|
Max Power Consumption |
5.67 W |
|
Cooling / Fan |
Fanless design (Silent operation) |
|
Casing & Mounting |
Durable metal casing; supports Desktop or Wall-mount |
|
Special Button |
1× Loop Prevention Button |

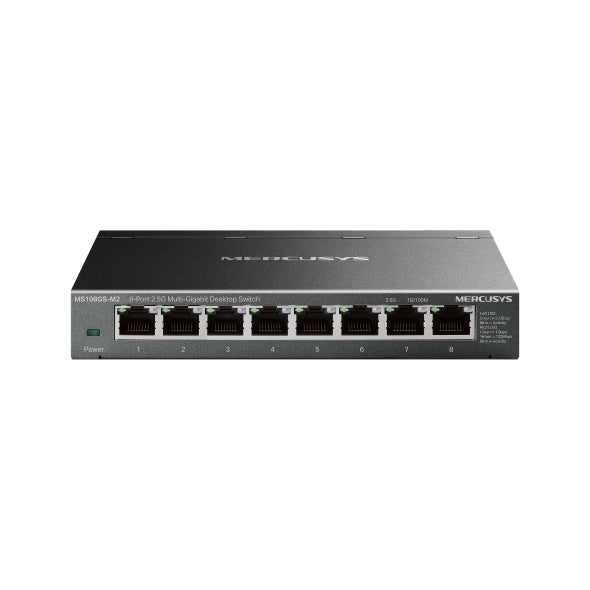

⚙️ Technical Specifications (for 8 ports)
|
Feature |
Specification |
|
Interfaces |
8× 100 Mbps / 1 Gbps / 2.5 Gbps RJ45 Ports (Auto-Negotiation, Auto-MDI/MDIX) |
|
Switching Capacity |
40 Gbps |
|
Packet Forwarding Rate |
29.8 Mpps |
|
MAC Address Table |
4K |
|
Jumbo Frame |
12 KB |
|
Standards & Protocols |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3x, IEEE 802.1p |
|
Power Supply |
External Power Adapter (Output: 12 VDC / 1.0 A) |
|
Max Power Consumption |
8.87 W |
|
Max Heat Dissipation |
30.16 BTU/h |
|
Cooling / Fan |
Fanless design (Silent operation) |
|
Casing & Mounting |
Durable metal casing; supports Desktop or Wall-mount |
|
Transfer Method |
Store and Forward |
