| Specification | Details |
|---|---|
| Model / SKU | PH-F120M25_G2_BBK01_3P |

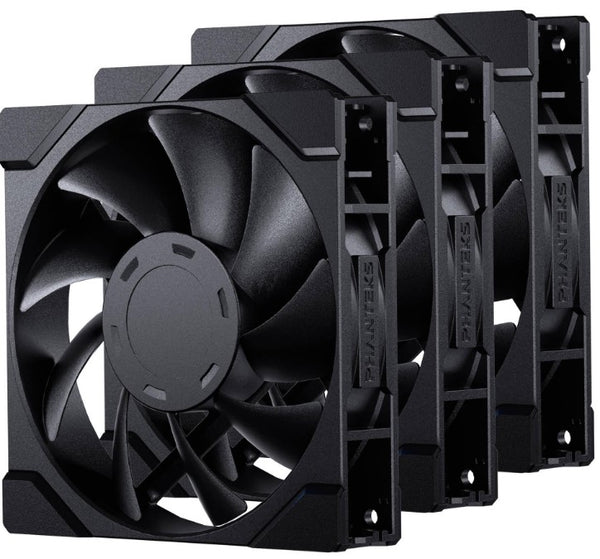

| Product Name | M25 G2-120 |
| Color | Black |
| Pack Quantity | 3 Fans |
| Fan Type | High-Airflow PWM Fan |
| Dimensions | 120 × 120 × 25 mm |
| Blade Design | 9-Blade |
| Bearing Type | Hydraulic Bearing |
| Connector | 4-Pin PWM |
| Fan Speed | 350–2000 ±10 RPM |
| Max Airflow | 72.72 CFM |
| Max Air Pressure | 2.51 mmH₂O |
| Noise Level | 35.13 dBA |
| Rated Voltage | 12V |
| Max Current | 0.30A |
| Max Power | 2.76W |
| Operating Voltage | DC 6–13.2V |
| MTFB | 40,000 Hours |
| D-RGB | No |
| Daisy-Chain Design | Yes |
| Cable Length | 120mm + daisy-chain |
| 500mm PWM Extension Cables | 2 |
| 500mm PWM Adapter Cable | 1 |
| Screw Covers | 8 × Corner + 4 × Bridge |
| Fan Screws | 14 |
| Triple-Pack Net Weight | 467 ±5g |
| Triple-Pack Gross Weight | 613 ±5g |
| Warranty | 3 Years |
