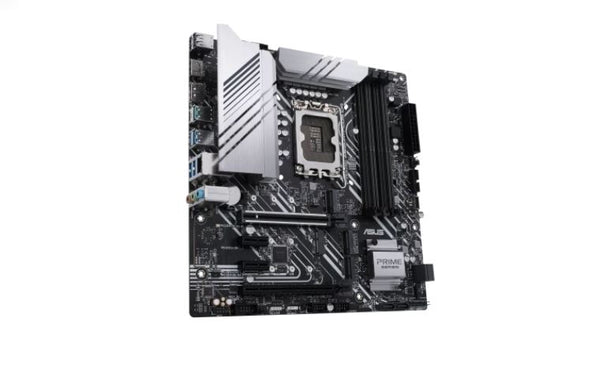

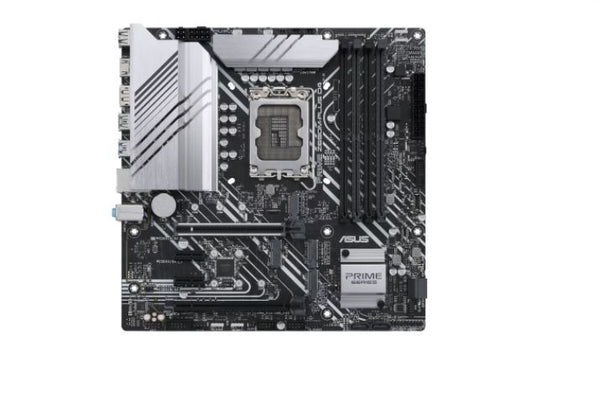

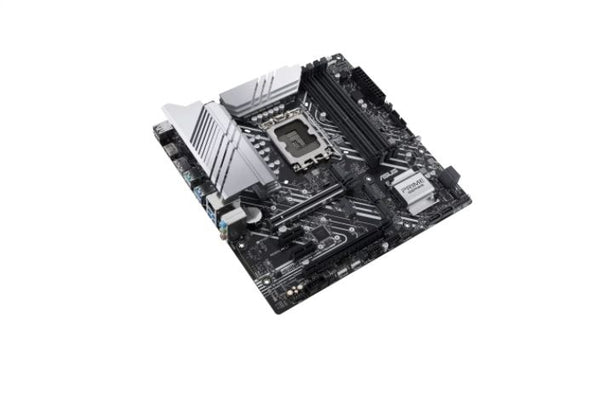

PRIME Z690M-PLUS DDR4 mATX Motherboard for LGA 1700 12th Gen Intel Processors
PRIME Z690M-PLUS D4
Intel® Z690 (LGA 1700) mATX motherboard with PCIe® 5.0, three M.2 slots, 10+1 DrMOS, DDR4, HDMI®, DisplayPort™, Intel® 1 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 header and Aura Sync RGB lighting
Intel® LGA 1700 socket: Ready for 12th gen Intel® processors
Enhanced power solution: 10+1 DrMOS, 4-pin+8-pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
Comprehensive cooling: Large VRM heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4
ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
Next-gen connectivity: DDR4, PCIe® 5.0, Intel® 1 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 header
