Processor & Hardware Engine
The system is powered by an AMD Ryzen V1500B processor, featuring 4 cores and 8 threads. It operates at a clock frequency of 2.2 GHz and includes an integrated hardware encryption engine.
Memory & Storage

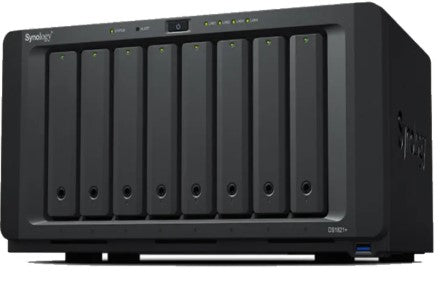

Out of the box, it comes equipped with 8 GB of DDR4 ECC SODIMM system memory. It has two memory slots that support an expansion capability of up to 32 GB ($16\text{ GB} \times 2$). The enclosure features 8 hot-swappable primary drive bays supporting both 3.5-inch SATA hard drives and 2.5-inch SATA drives or SSDs. It also includes built-in M.2 NVMe SSD slots used for high-speed caching or storage pools. Storage capacity can be expanded up to 18 bays in total using two DX525 expansion units.
Connectivity & Interfaces
For network connectivity, the device includes two built-in 2.5GbE RJ-45 LAN ports. It features three USB 3.2 Gen 1 ports and expansion ports. Additionally, it houses one PCIe Gen 3 x8 expansion slot (with x4 link), allowing for upgrades such as faster networking up to 25GbE.
